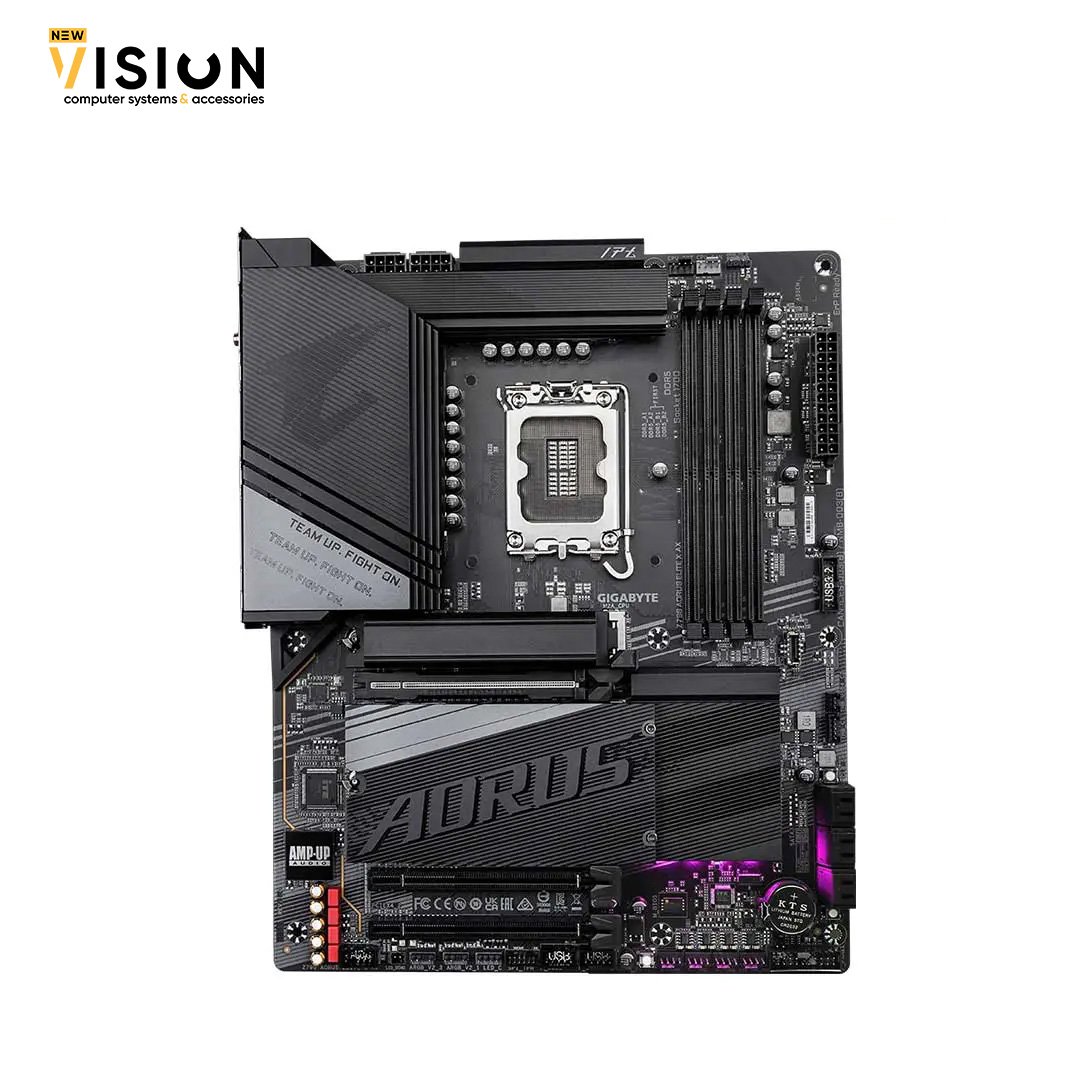

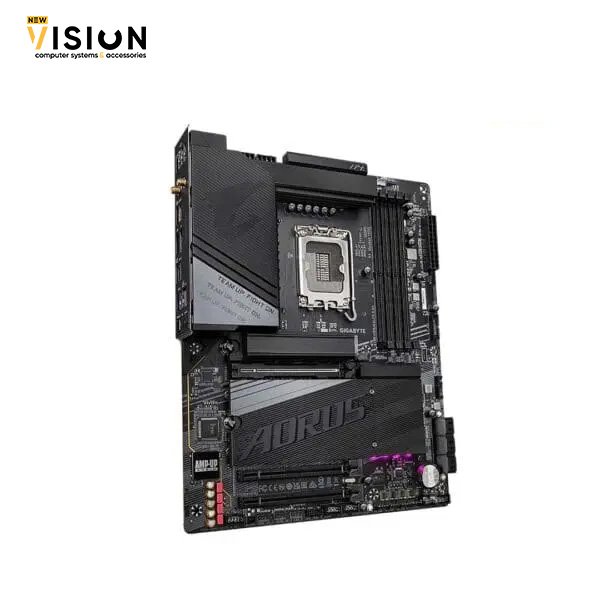

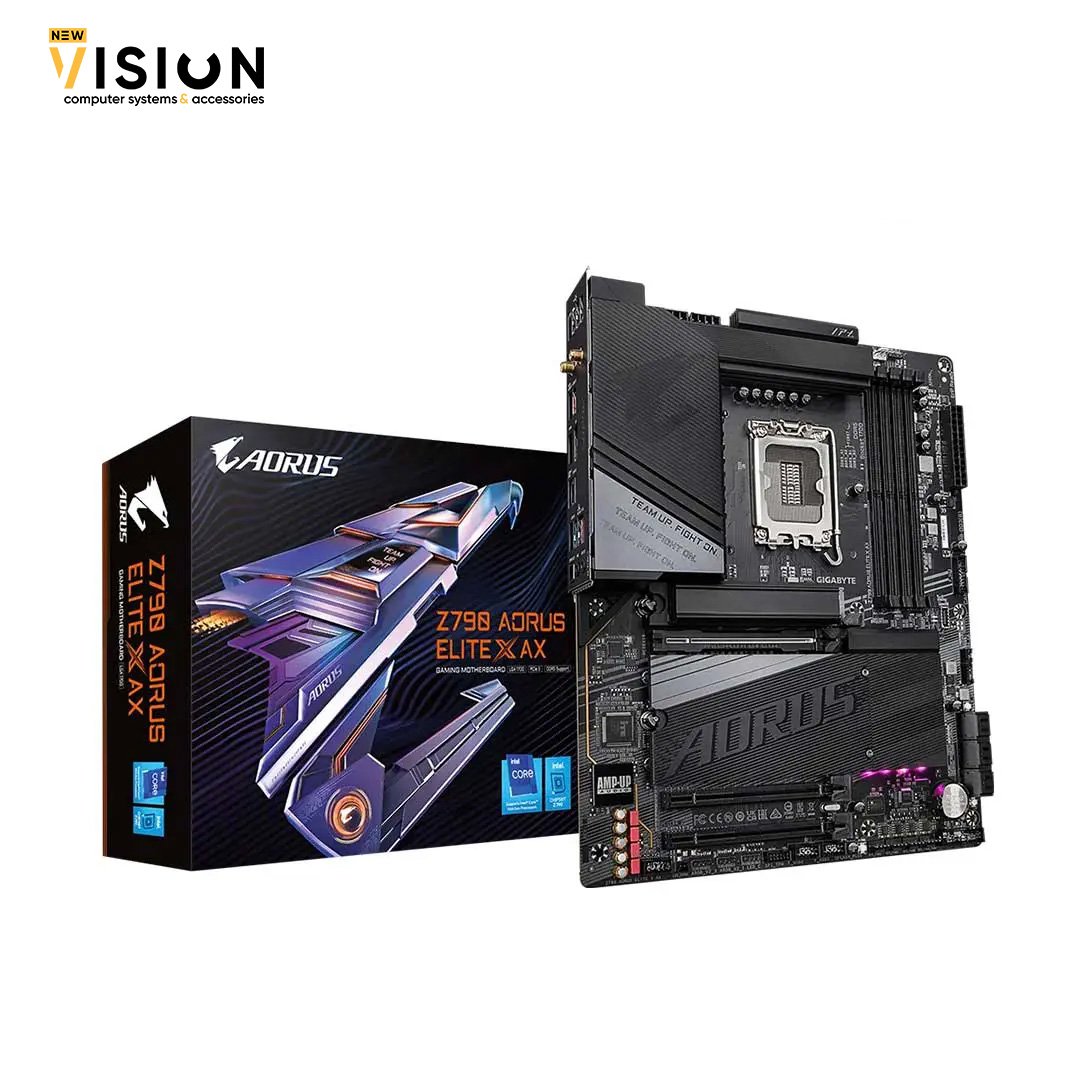

Gigabyte Z790 Aorus Elite X AX Motherboard

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
  L3 cache varies with CPU

• Chipset

  Intel® Z790 Express Chipset

• Memory

  Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules

• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

• Audio

  Realtek® ALC1220-VB CODEC
  High Definition Audio
  2/4/5.1/7.1-channel

  LAN

  Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
  – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  – BLUETOOTH 5.3
  – Support for 11ax 160MHz wireless standard
  Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
  – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  – BLUETOOTH 5.3
  – Support for 11ax 160MHz wireless standard

• Expansion Slots

  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  Chipset:
  – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

• Storage Interface

  CPU:
  – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
  – 6 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:
  – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
  internal USB header
  – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
  through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
  the internal USB headers)

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  6 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x reset button
  1 x Q-Flash Plus button
  1 x Clear CMOS button
  1 x reset jumper
  1 x Clear CMOS jumper

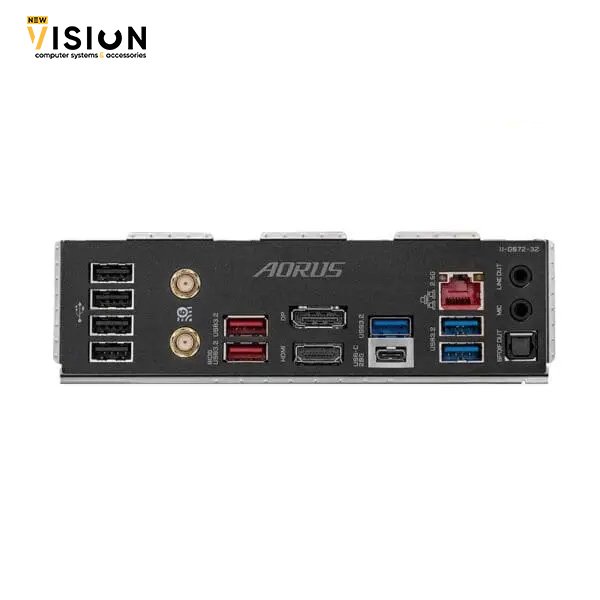

• Back Panel Connectors

  1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  2 x SMA antenna connectors (2T2R) jk
  1 x HDMI port
  1 x DisplayPort
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)
  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
