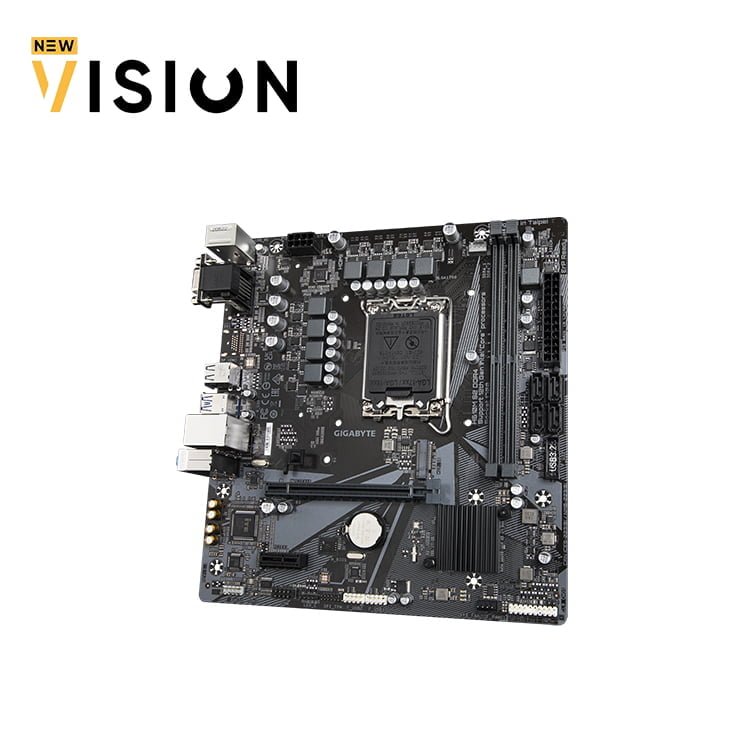

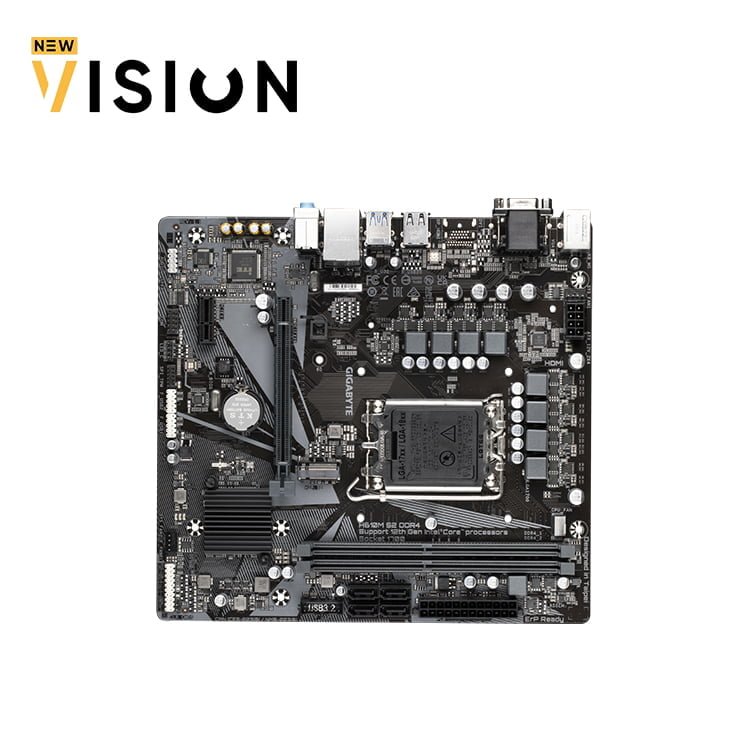

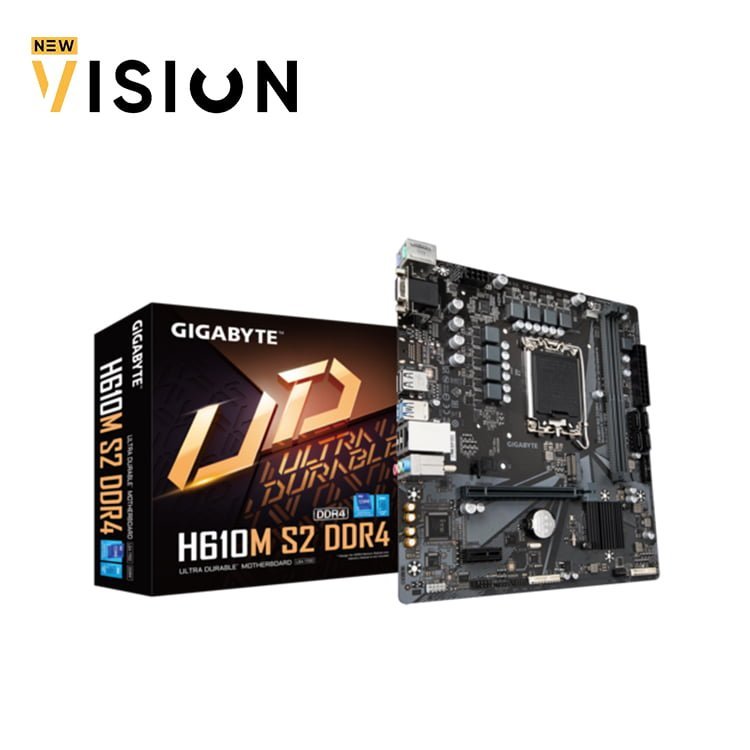

GIGABYTE H610M S2 DDR4

Gigabyte H610M S2 DDR4

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Realtek Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6

Gigabyte H610M S2 DDR4 Motherboard Features

6 + 1 + 1 phases hybrid power design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy load.

6 + 1 + 1 low phase RDS (on) MOSFETs
Solid capacitors for improved transient response and reduced oscillation.
8-pin hard core CPU power connector.

Exclusive Realtek 8118 Gaming LAN
High-speed gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance, gamer-friendly network chip with automatic bandwidth allocation to ensure the highest network priority in a game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.

Solid power connectors

H610 motherboards feature ATX 12V 8pin solid state power connectors to provide a stable power supply during CPU overload.
Advantages of a solid power connector

Larger contact area for electricity
More metal for higher energy conservation and heat generation
Ultra durable and longer life

BIOS
The BIOS is necessary for users during the initial setup to allow for optimal settings. With a new graphical user interface and easier-to-use functions, GIGABYTE has reinvented the BIOS to give users a better experience while setting up their new system.

Gigabyte H610M S2 DDR4 motherboard specifications

• CPU
  LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU
  * Please refer to “CPU Support List” for more information.
• Chipset
  Intel® H610 Express Chipset
• Memory
  Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  (Graphics specifications may vary depending on CPU support.)
• Audio
  Realtek® Audio CODEC
• High Definition Audio
  2/4/5.1/7.1-channel
  You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
  1 x PCI Express x16 slot, running at x16
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
  1 x PCI Express x1 slot
  (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
• Storage Interface
• Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
  USB
• Chipset:
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x CPU fan header
  2 x system fan headers
  1 x RGB LED strip header
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x serial port header
  1 x Clear CMOS jumper

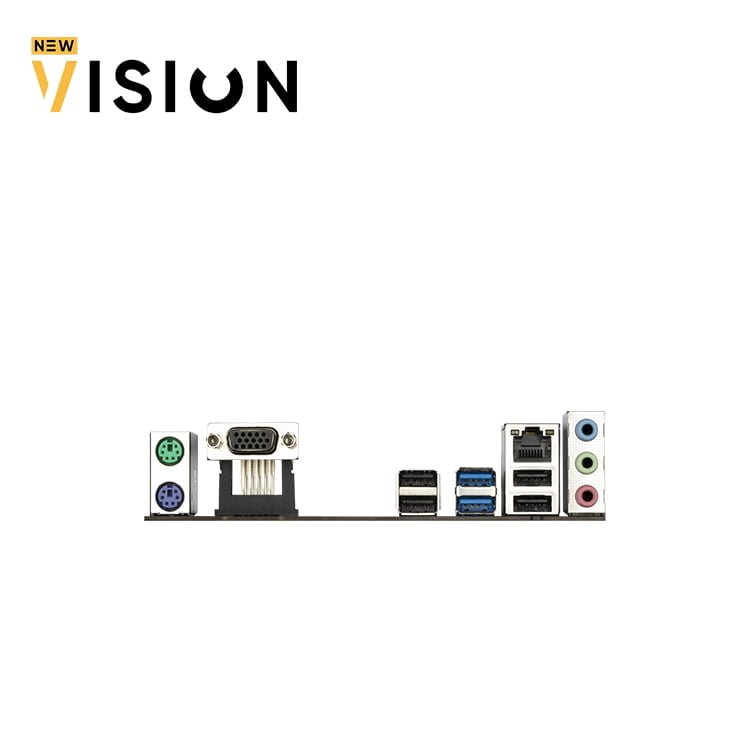

• Back Panel Connectors
  1 x PS/2 keyboard port
  1 x PS/2 mouse port
  1 x D-Sub port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Overheating warning
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
  Ambient LED
  EasyTune
  Smart Backup
  System Information Viewer
  Support for Q-Flash
  Support for Xpress Install
• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
  Micro ATX Form Factor; 23.0cm x 21.5cm
