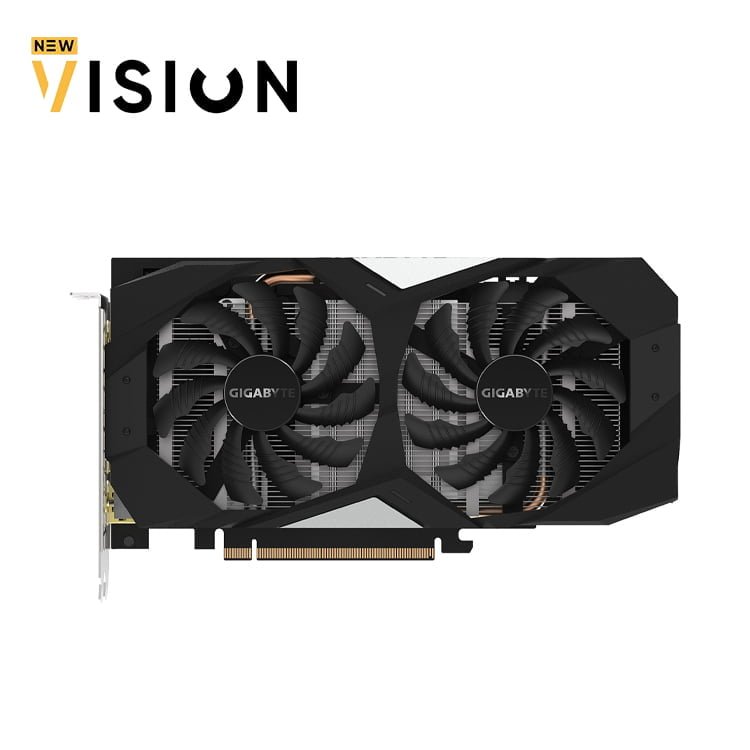

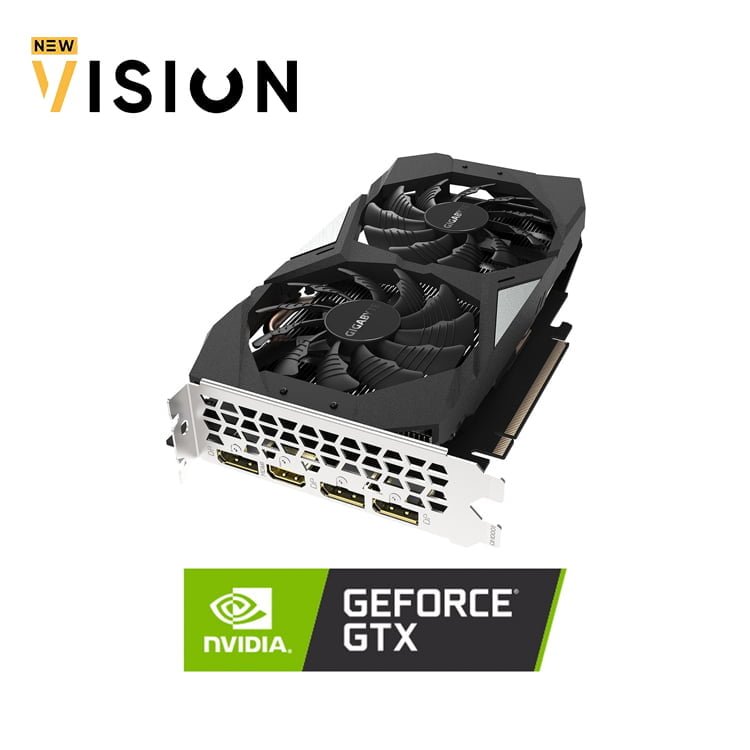

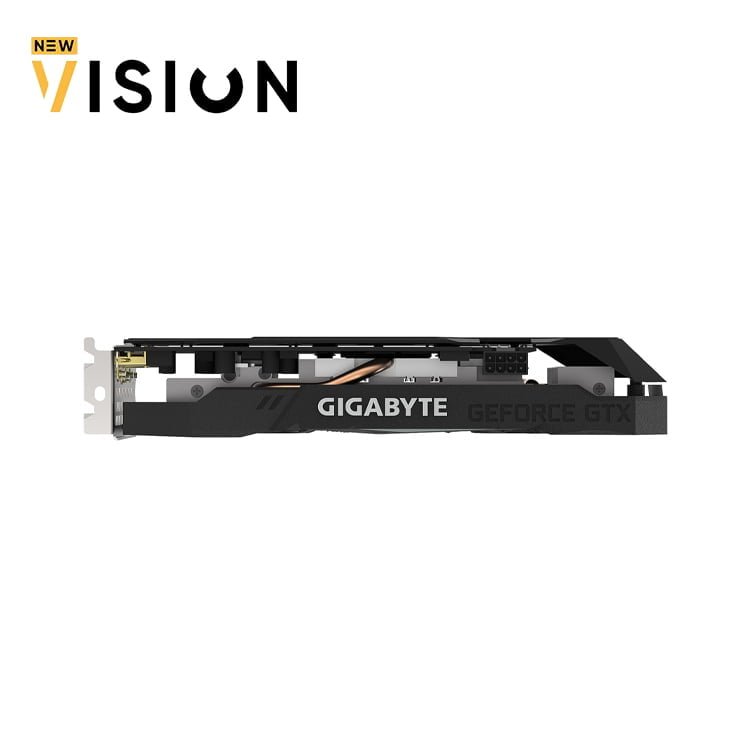

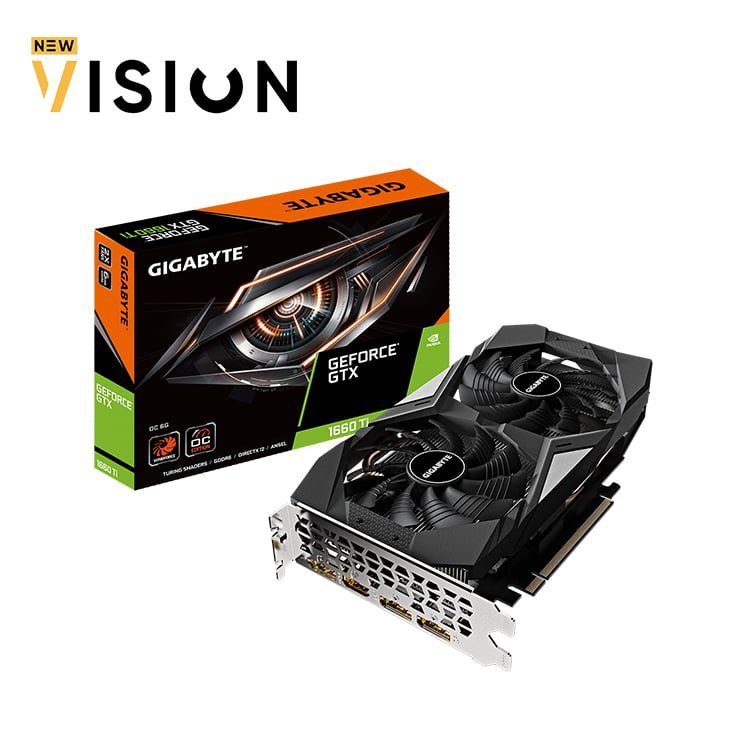

GIGABYTE GTX 1660 Ti OC 6G Graphics Card GDDR6 GV-N166TOC-6GD

GIGABYTE GTX 1660 Ti OC 6G

Features
Powered by GeForce® GTX 1660 Ti
NVIDIA Turing™ architecture and GeForce Experience™
Integrated with 6GB 192bit GDDR6 memory interface

GIGABYTE Specially Designed Cooling System

WINDFORCE 2X COOLING SYSTEM WITH ALTERNATIVE COOLING FANS

GeForce GTX 1660 Ti OC 6G Unique Blade Fan

90mm Unique Blade Fans
Back Protection Panel

The main clock of gigabytes

1800MHz (Reference Card 1770MHz)

GIGABYTE WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X Cooling System features unique 2 x 90mm blade fans, replacement rotary fan, direct touch composite copper heat pipe and 3D active fan function, which together provide efficient heat dissipation for higher performance at lower temperatures.

GeForce GTX 1660 Ti OC 6G Graphics Card Replacement Spin

GIGABYTE “Alternative Circulation” is the only solution that can solve the problem of turbulent airflow for adjacent fans. Since the adjacent fans rotate in the same direction, the direction of the air flow is opposite between the fans, which causes turbulent air flow and reduces the heat dissipation efficiency. GIGABYTE rotates adjacent fans in the opposite direction, so that the direction of air flow between the two fans is the same, reducing turbulence and enhancing airflow pressure.

GeForce GTX 1660 Ti OC 6G

alternate yarn
Smooth airflow: better heat dissipation
Standard Yarn
Turbulent air flow: worst heat dissipation
Gigabyte unique blade fan

The air flow is divided by the triangular edge of the fan, and it is smoothly guided through the three-dimensional strip curve on the surface of the fan, which effectively enhances the air flow.

GeForce GTX 3D Active Fan

The 3D active fan provides near-passive cooling, and the fans will remain off when the GPU is in a low-load state or a low-power game. It allows players to enjoy playing in complete silence when the system is light or idle.

Gigabyte direct touch heat pipe

The pure copper heat pipe profile maximizes the area of ​​direct contact with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM by contacting a large metal plate to ensure proper cooling.

Heat pipe compound with GeForce GTX graphics card

Composite heat pipes combine heat conduction and phase transition to efficiently manage heat transfer between two rigid interfaces maximizing cooling capacity.

The robust, durable, and super-fast build of the GeForce GTX graphics card

Extreme durability and overclocking
The graphics card uses a 4+2 power phase design to allow the MOSFET to operate at a lower temperature, an over-temperature protection and load balancing design for each MOSFET, as well as ultra-durable certified chokes and capacitors, to provide excellent performance and a longer system life.

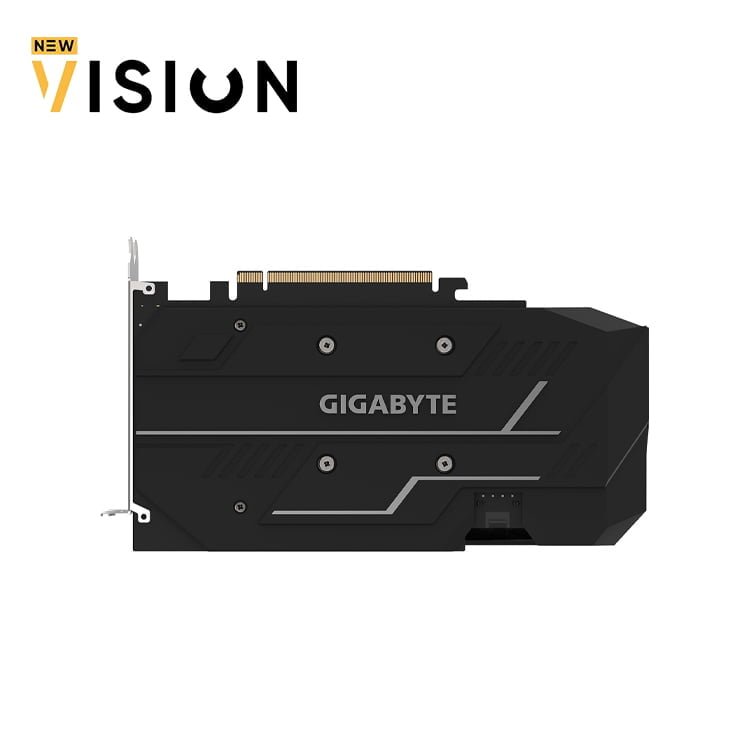

Gigabyte back panel

The back panel not only provides the aesthetics, but also enhances the architecture of the graphics card to provide complete protection.

Total order of GeForce GTX graphics card

The actual user interface and functionality of the software depends on the model of each device.

Gigabyte AORUS Drive

The advanced intuitive interface allows you to adjust clock speed, voltage, fan performance and target power in real time according to your game requirements.

GeForce GTX 1660 Ti OC 6G graphics card specifications

GeForce® GTX 1660 Ti OC 6G

• Graphics Processing
  GeForce® GTX 1660 Ti
• Core Clock
  1800 MHz (Reference Card: 1770 MHz)
• CUDA® Cores
  1536
• Memory Clock
  12000 MHz
• Memory Size
  6 GB
• Memory Type
  GDDR6
• Memory Bus
  192 bit
• Memory Bandwidth (GB/sec)
  288 GB/s
• Card Bus
  PCI-E 3.0 x 16
• Digital max resolution
  7680×4320@60Hz
• Multi-view
  4

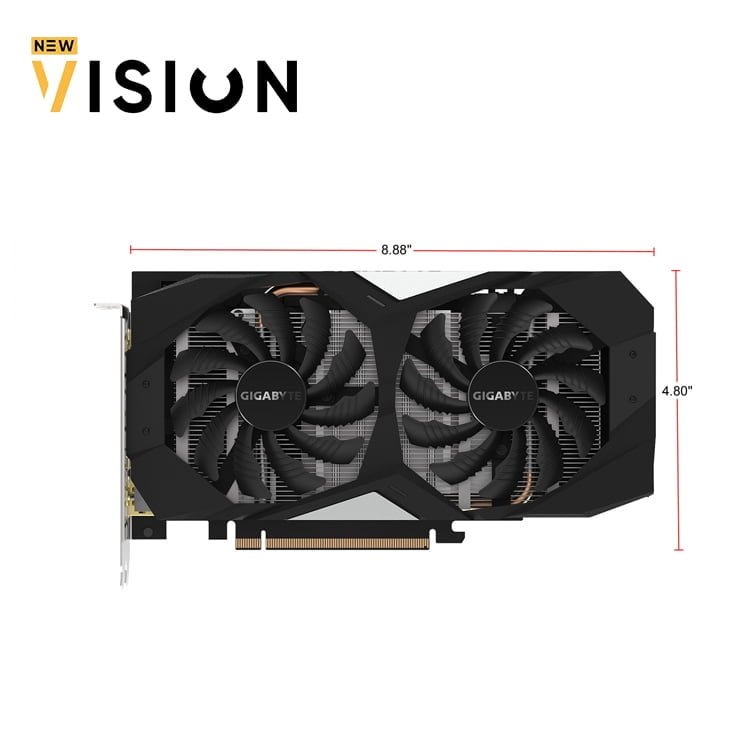

• Card size
  L=225.65 W=122.02 H=40.5 mm
• PCB Form
  ATX
• DirectX
  12
• OpenGL
  4.6
• Recommended PSU
  450W
• Power Connectors
  8 Pin*1

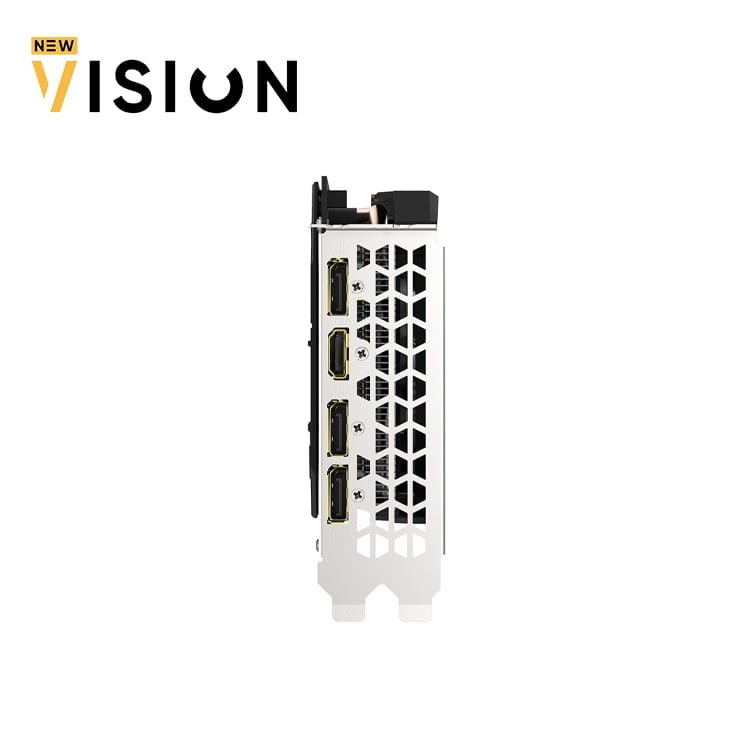

• Output
  DisplayPort 1.4 *3
  HDMI 2.0b *1
• SLI Support
  No
• Accessories
  1. Quick guide
  2. Driver CD
