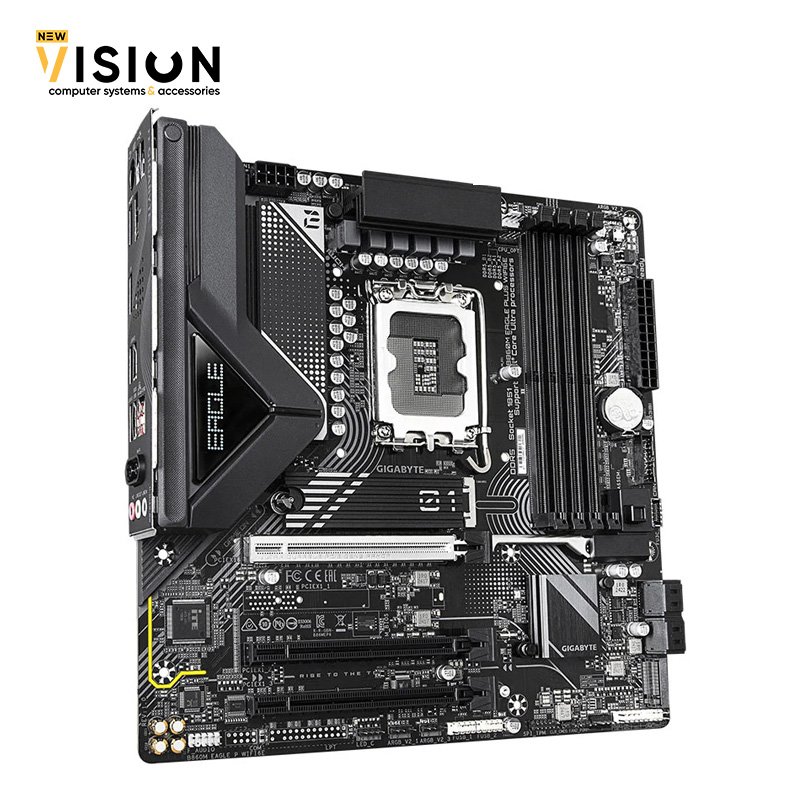

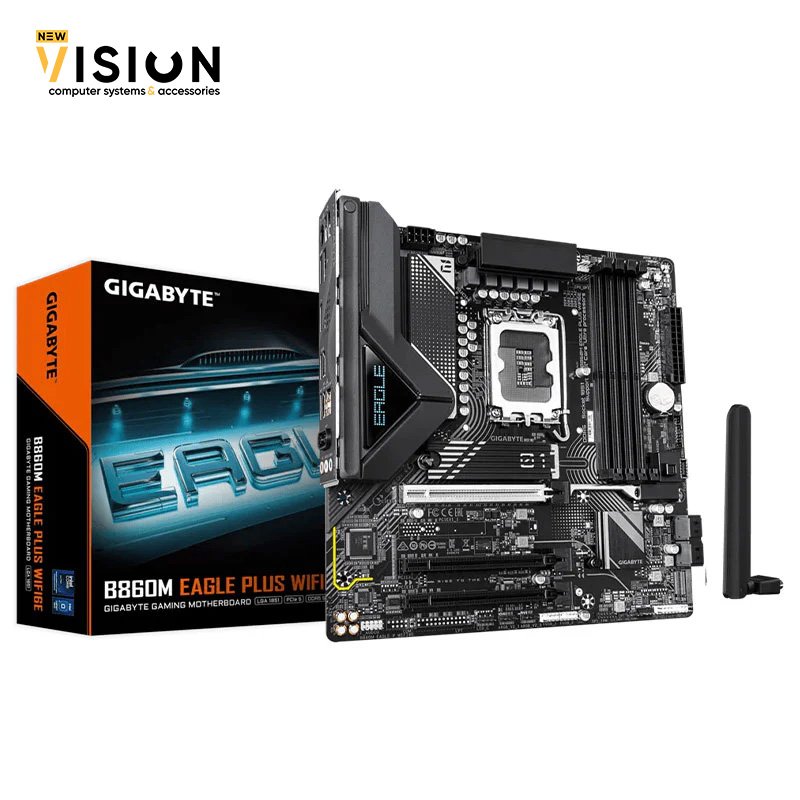

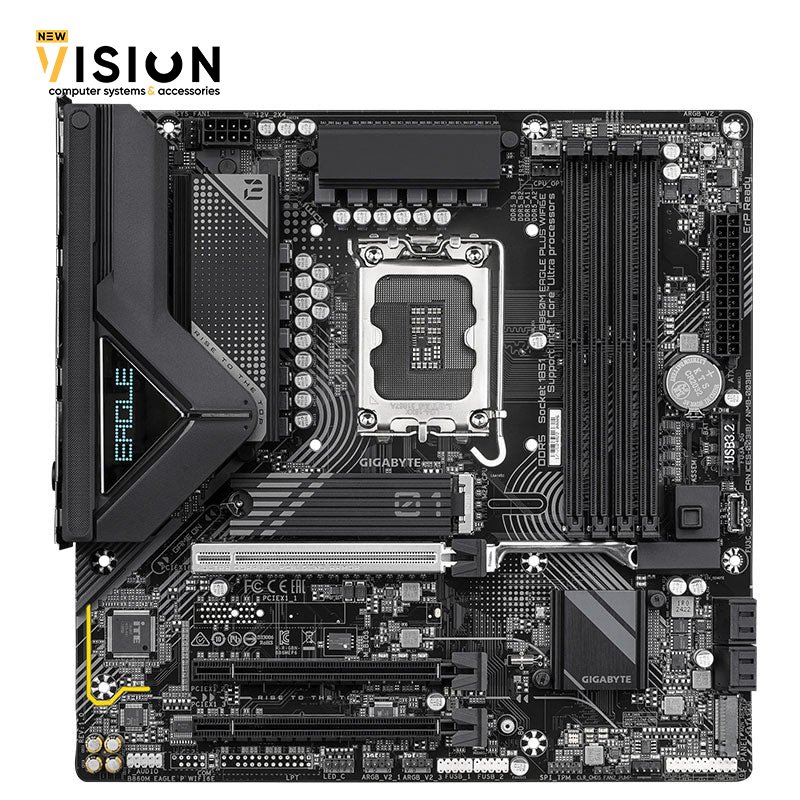

GIGABYTE B860M EAGLE PLUS WIFI6E MOTHERBOARD
9,899 EGP
تمثل لوحة GIGABYTE B860M EAGLE PLUS WIFI6E حلاً مثاليًا لمن يبحث عن لوحة أم صغيرة الحجم (Micro ATX) تجمع بين الأداء العالي والتقنيات الحديثة، بدعمها لمعالجات Intel Core Ultra عبر مقبس LGA1851، بالإضافة إلى دعم ذاكرة DDR5 بسرعة تصل إلى 9066MT/s، ومنافذ PCIe 5.0، والاتصال اللاسلكي عبر Wi-Fi 6E وBluetooth 5.3
The GIGABYTE B860M EAGLE PLUS WIFI6E is a feature-rich Micro ATX motherboard designed for Intel’s latest Core Ultra processors using the LGA1851 socket. It combines cutting-edge technologies such as DDR5 memory support up to 9066MT/s, PCIe 5.0 expansion, and Wi-Fi 6E with Bluetooth 5.3, all in a compact form factor perfect for gaming and productivity PCs.
Specifications:
CPU & Chipset:
Socket: LGA1851
Supported CPUs: Intel Core Ultra Processors
Chipset: Intel B860 Express
L3 Cache: Varies by CPU
Memory:
Supports DDR5 memory up to 9066MT/s (OC)
4 x DDR5 DIMM slots (up to 256GB total capacity)
Dual-channel architecture
Supports XMP profiles and ECC un-buffered DIMMs (non-ECC mode)
Integrated Graphics:
1 x HDMI 2.1 (up to 4096×2160 @ 60Hz)
2 x DisplayPort 2.1 (up to 3840×2160 @ 144Hz)
Supports triple-display output
Audio:
Realtek High Definition Audio CODEC
Supports 7.1-channel audio
Includes S/PDIF Out
Networking:
Realtek 2.5GbE LAN for high-speed wired networking
Wi-Fi 6E + Bluetooth 5.3 (Intel or Realtek depending on revision)
Expansion Slots:
1 x PCIe 5.0 x16 (CPU – GPU or NVMe SSD only)
2 x PCIe 4.0 x1 (Chipset – for expansion cards)
Storage:
1 x M.2 PCIe 5.0 x4 (M2A_CPU)
1 x M.2 PCIe 4.0 x4 (M2N_SB)
4 x SATA 6Gb/s ports
Supports RAID 0, 1, 5, and 10
USB Ports:
1 x USB-C 3.2 Gen 1 (internal header)
1 x USB-A 3.2 Gen 2 (rear panel)
4 x USB-A 3.2 Gen 1 (2 rear, 2 internal)
7 x USB 2.0 (3 rear, 4 internal)
Internal Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin 12V CPU power connector
2 x M.2 slots, 4 x SATA ports
3 x Addressable RGB Gen2 headers, 1 x RGB header
Multiple fan and pump headers
Q-Flash Plus button, Reset jumper, Clear CMOS jumper

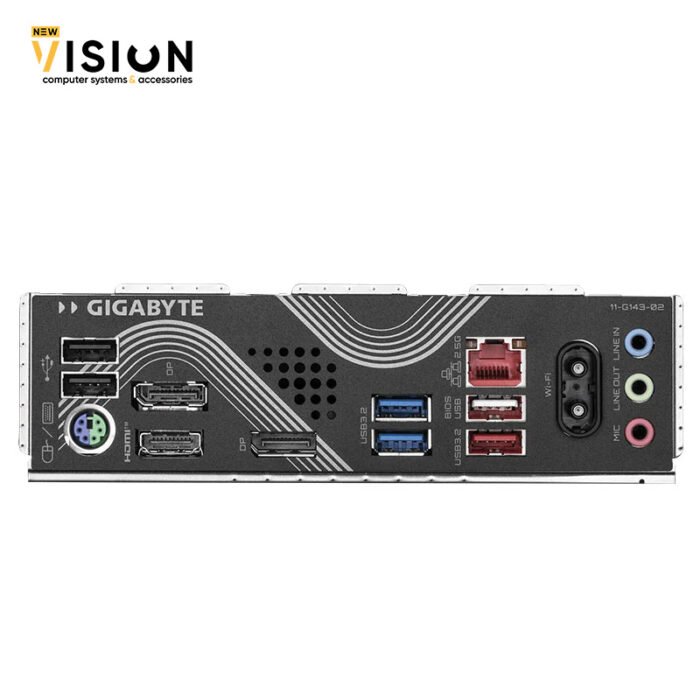

Rear I/O:
1 x HDMI, 2 x DisplayPort
1 x USB-A 3.2 Gen 2
2 x USB-A 3.2 Gen 1
3 x USB 2.0
1 x RJ-45 Ethernet port
3 x Audio jacks
2 x Wi-Fi antenna connectors
BIOS & Software:
AMI UEFI BIOS
Supports Q-Flash Plus (BIOS update without CPU or RAM)
Bundled with LAN management software
| Brand |
GIGABYTE |
|---|---|
| Motherboard type |
Intel |
| Motherboard brand |
Gigabyte |
| Chipset |
B860 |
