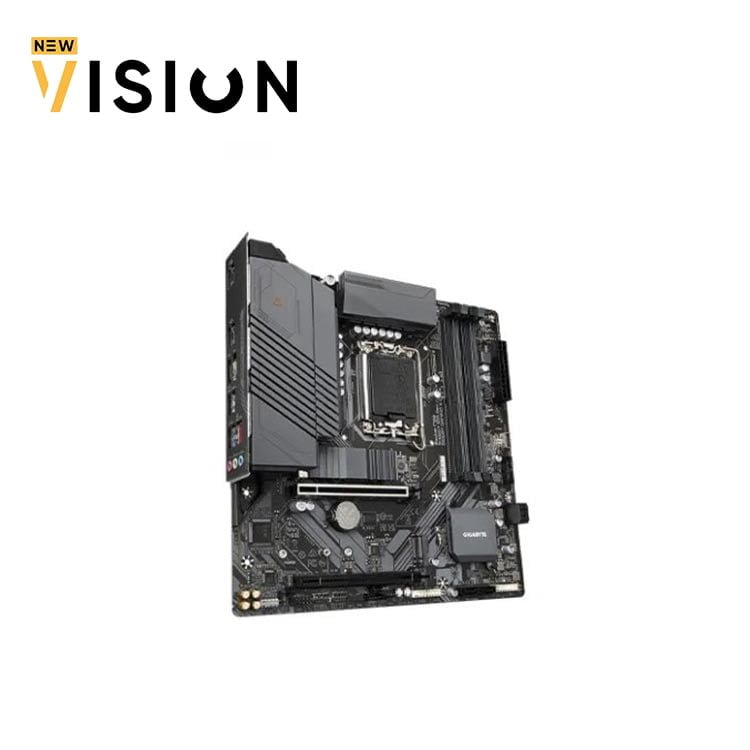

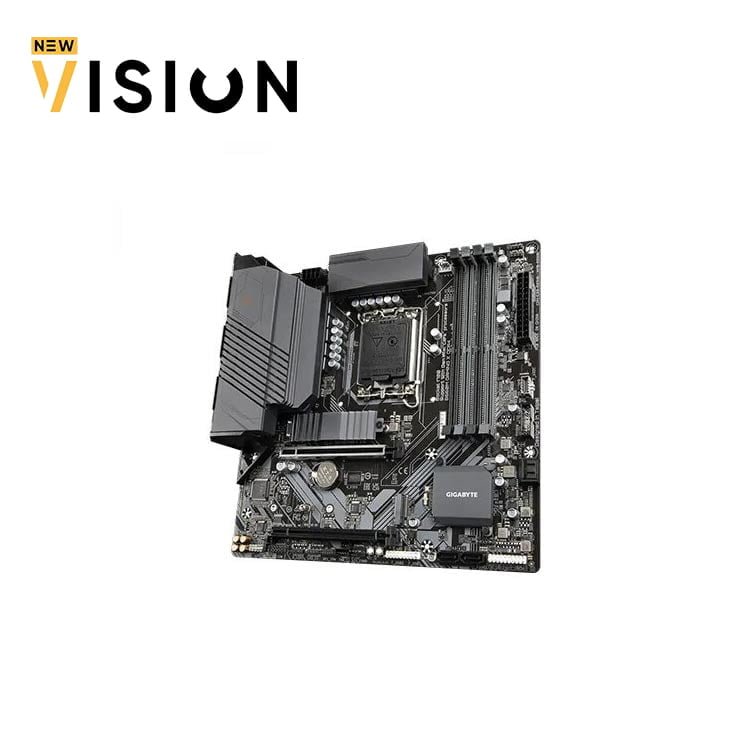

Gigabyte B660M GAMING X DDR4

Gigabyte B660M GAMING X DDR4

Unparalleled Performance from the Gigabyte B660M GAMING X DDR4 Motherboard With technology advancing so rapidly, GIGABYTE continues to keep pace with the latest trends and provide our customers with advanced features and the latest technology. GIAGBYTE B660 series motherboards come with an upgraded power solution, the latest storage standards and great connectivity for enhanced gaming performance.

Features of the Gigabyte B660M GAMING X DDR4 motherboard

Intel® B660 GAMING Motherboard with 8+1+1 Phase Hybrid Digital VRM Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Protection, 2.5GbE LAN, USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0 Q Flash Plus

Supports 12th generation Intel® Core™ processors
Dual Channel DDR4 Non-ECC Memory, DDR4 4 DIMM
8 + 1 + 1 Hybrid Digital VRM Design with DrMOS
Fully enclosed thermal design with high-coverage VRM heatsinks
2.5G LAN with Bandwidth Management
Dual SuperSpeed ​​NVMe PCIe 4.0 x4 M.2 with Thermal Protection
USB 3.2 Gen 2 Type-C® for fast, versatile connections
IO Shield is pre-installed for quick and easy installation
High quality audio capacitors and Audio Noise Reduction
RGB FUSION 2.0 software supports addressable LED and RGB LED strips

Smart Fan 6 features multiple temperature sensors, and hybrid fan connections with FAN STOP
Q-Flash Plus Update BIOS without installing CPU, memory and graphics card

ultimate aesthetics
GIGABYTE motherboards feature many useful and intuitive software programs to help users control every aspect of the motherboard and provide a customizable lighting effect with great aesthetics to suit your unique personality.

Ultra durable
GIGABYTE’s Ultra Durable technology stands out for the durability of its products and high-quality manufacturing process. GIGABYTE motherboards use the finest components and reinforce each slot to make each one solid and durable.

Gigabyte B660M GAMING X DDR4 motherboard specifications

• CPU
  LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  L3 cache varies with CPU
  Please refer to “CPU Support List” for more information.
• Chipset
  Intel® B660 Express Chipset
• Memory
  Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules
  4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  Support for HDMI 2.1 version and HDCP 2.3.
  Support native HDMI 2.1 TMDS compatible ports.
  1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  Support for DisplayPort 1.2 version and HDCP 2.3
  (Graphics specifications may vary depending on CPU support.)
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  Support for S/PDIF Out
• LAN
  2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  1 x PCI Express x16 slot, running at x16 (PCIEX16)
  For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  Storage Interface
• CPU:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  4 x SATA 6Gb/s connectors
  Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Intel® Optane™ Memory Ready
  System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
• USB
• Chipset:
  1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  1 x USB 2.0/1.1 port on the back panel
  Chipset+2 USB 2.0 Hubs:
  8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  3 x system fan headers
  2 x addressable LED strip headers
  2 x RGB LED strip headers
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x S/PDIF Out header
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x serial port header
  1 x reset button
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper
  All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  Back Panel Connectors
  3 x USB 3.2 Gen 1 ports
  5 x USB 2.0/1.1 ports
  1 x HDMI 2.1 port
  1 x DisplayPort
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed control
  Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for APP Center
  Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
  Support for Q-Flash Plus
  Support for Q-Flash
  Support for Xpress Install
• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
  Micro ATX Form Factor; 24.4cm x 24.4cm

Gigabyte B660M GAMING X DDR4 motherboard price in Egypt

The Gigabyte B660M GAMING X DDR4 motherboard ranges globally in the range of $2000 or its equivalent in local currency.

The price of the Gigabyte B660M GAMING X DDR4 motherboard in Egypt is currently in the high economic category, which is suitable for most students, employees, companies and professional players
