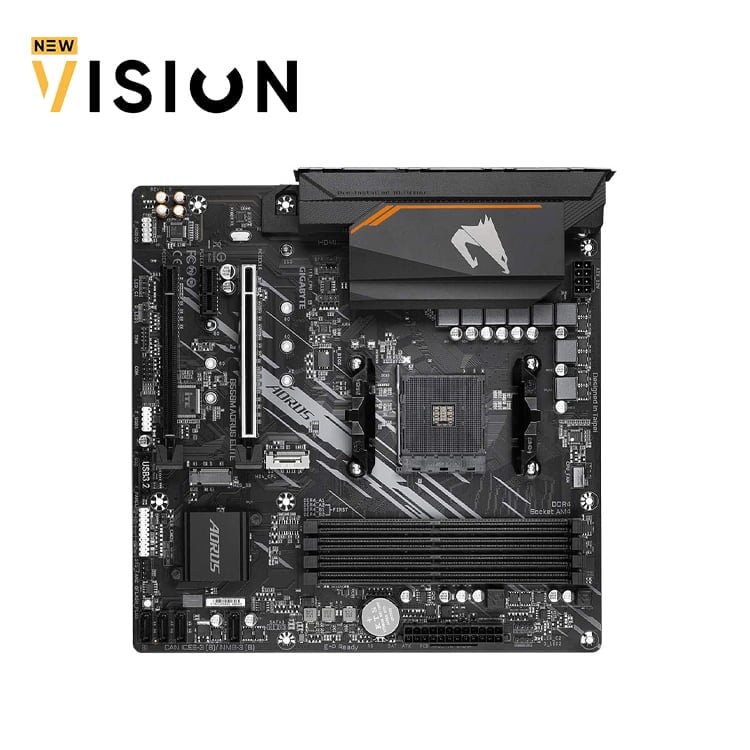

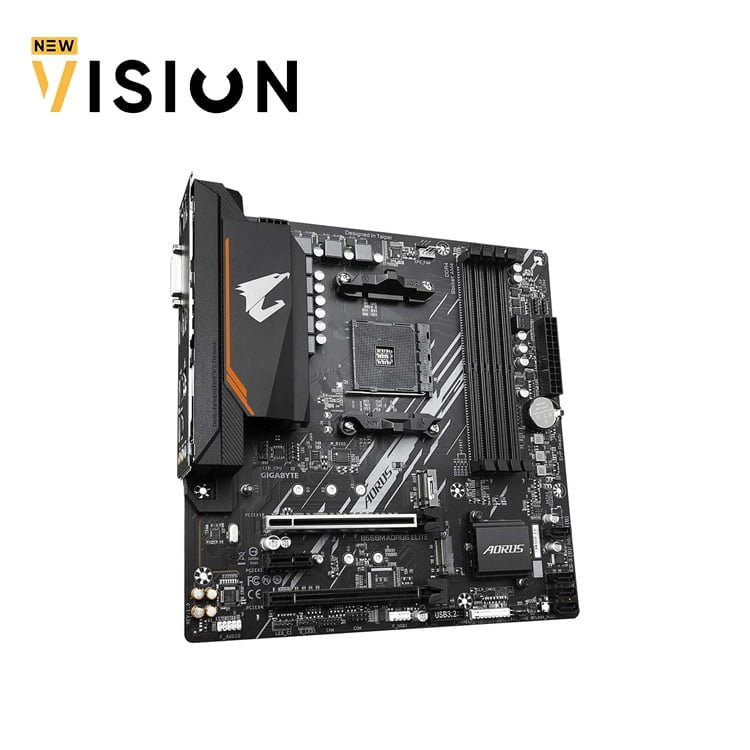

Gigabyte B550M AORUS ELITE Motherboard AM4

B550M AORUS ELITE

GIGABYTE Motherboard B550M AORUS ELITE Motherboard B550 maximize the potential of your PC with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and improve the overall user experience.

Features of B550M AORUS ELITE motherboard

Ultra Durable AMD B550 Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G and Ryzen™ 3000 Series processors
Dual Channel DDR4 / Non-ECC, DDR4 4 DIMM
5 + 3 Phase Pure Digital Voltage Regulator Module Solution With Low RDS MOSFETs (On)
Ultra Durable™ PCIe 4.0 slot ready x16
Ultra-fast NVMe PCIe 4.0 / 3.0 M.2 connectors
High-quality audio capacitors and Audio Noise Reduction for ultimate audio quality
Gigabyte 8118 GbE LAN Specialty Game Card
Support HDMI and DVI back
RGB FUSION 2.0 software supports customizable LED and RGB LED strips
Smart Fan 5 features multiple temperature sensors, and hybrid fan connections with FAN STOP
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
Sulfur Resistor Design

AMD StoreMI Technology from B550M AORUS ELITE

GIGABYTE B550 motherboards maximize the potential of your PC with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and improve the overall user experience. This easy-to-use tool combines the speed of SSDs and the high capacity of hard disk drives into a single drive, boosts device read/write speeds to match SSDs, boosts data performance for incredible value, and turns your everyday PC into a system performance driven.

Advantages of AMD StoreMI:

• Make your PC experience fast, smooth and easy
• Optimize the response of the computer from system boot to application launch
• Delivering SSD performance with HDD capacity at an affordable cost
• Quick access to key files by automatically learning users’ computing behaviors

PERFORMANCE OF B550M AORUS ELITE

5 + 3 Phase Pure Digital Voltage Regulator Module Solution With Low RDS MOSFETs (On)

IGABYTE AORUS series motherboards use a pure digital design of 5 + 3-phase PWM + Low RDS (on) MOSFETs to support 3rd generation AMD Ryzen™ CPUs by delivering incredible precision in power delivery to the motherboard’s most power-hungry and power-sensitive components. Like in addition to offering improved system performance and maximum hardware scalability.

Benefits of Low RDS(on) MOSFETs
Optimized gate fees to reduce switching losses.
‧ Lower temperature, smaller volume, better thermal properties.

PCIe 4.0 Hardware Design

Connecting from B550M AORUS ELITE

Dual NVMe PCIe 4.0 * / 3.0 M.2 Connectors
With onboard NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors, GIGABYTE motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSDs. The dual M.2 header design, providing data transfer speeds of up to 64 Gbit/s, provides an ideal storage solution while also supporting RAID modes.
Actual support may vary by CPU.

Realtek 8118 Gaming LAN Exclusive

High-speed gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance, gamer-friendly network chip with automatic bandwidth allocation to ensure the highest network priority in a game or application. It can provide users with the most comprehensive features and the fastest and smoothest internet experience.
The program in the foreground gets the highest priority

HDMI

2.1 to support 4K/60P/21:9/HDCP 2.3

HDMI 2.1, which is backward compatible with HDMI 2.0 / 1.4 and offers a bandwidth of up to 48 Gbit / s – two times more than the previous generation. This unleashes users’ potential to transfer multiple video streams, combined with the original cinematic 21:9 ratio (in which most movies are shot), HDR and HDCP 2.3 support, to deliver the best visual experience for viewers.

Cooling from B550M AORUS ELITE

MOSFET MOSFET Heatsink
An enlarged MOSFET heat sink ensures a lower temperature.
IO shield pre-installed for easy assembly.

B550M AORUS ELITE Smart Fan 5

With Smart Fan 5, users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan heads to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5, more hybrid fan headers have been introduced that support both PWM and Voltage mode fans to make the motherboard more suitable for liquid cooling.

temperature sensors

B550M AORUS ELITE Hybrid Fan Heads

■ 5 temperature sensors
■ 3 pin fan headers
■ All fan clip heads have been upgraded to hybrid fan heads
■ interoperable fans and sensors
■ Intuitive user interface for fan control

B550M AORUS ELITE Fan Connectors

indoor temperature sensors
Different models have a different number of fan pin connectors and temperature sensors. Smart Fan 5 function may vary by model

Fan silent. With Fan Stop, set any fan to stop completely when temperatures drop below a certain limit. Which fan to stop, based on the readings from any sensor, at what temperature – all of this can be customized to your liking.

Intelligent Fan Control Design for B550M AORUS ELITE

light
RGB FUSION 2.0.0 Update
With B550 motherboards, RGB Fusion 2.0 is even better with addressable LEDs. RGB Fusion 2.0 software provides users with the option to control built-in RGB and controllable RGB/LED external lighting strips* to build their own PC. RGB Fusion 2.0 is already full of colors and patterns, and has now been upgraded to improve Addressable LED support. With external addressable LED strips, each LED can be digitally processed so that users can experience more patterns, patterns and lighting.

With B550 motherboards, external 5V Addressable LED light strips and up to 300 LEDs are supported. RGB Fusion 2.0 software with addressable LEDs comes with new patterns and different speed settings with more to come.

External RGB LED strips and addressable LED strips are not included with motherboard purchase.

B550M AORUS ELITE Hybrid Fan Heads

Assume complete control of your liquid cooling setup! Smart Fan 5 receives the latest information about flow rate and water temperature through Hybrid Fan Pin heads or external thermistor sensors – giving you absolute mastery of your PC.
• All hybrid fan heads can automatically detect the type of cooling device whether it is a fan or a pump with different PWM mode or voltage.

New Smart Fan 5 software

Choose from different modes, from quiet to full speed, to match your system usage preferences.
For each fan or pump, you can use an intuitive fan curve to determine trigger thresholds and corresponding fan speeds.

Lighting from B550M AORUS ELITE

RGB FUSION 2.0.0 Update
With B550 motherboards, RGB Fusion 2.0 is even better with addressable LEDs. RGB Fusion 2.0 software provides users with the option to control built-in RGB and controllable RGB/LED external lighting strips* to build their own PC. RGB Fusion 2.0 is already full of colors and patterns, and has now been upgraded to improve Addressable LED support. With external addressable LED strips, each LED can be digitally processed so that users can experience more patterns, patterns and lighting.

With B550 motherboards, external 5V Addressable LED light strips and up to 300 LEDs are supported. RGB Fusion 2.0 software with addressable LEDs comes with new patterns and different speed settings with more to come.

External RGB LED strips and addressable LED strips are not included with motherboard purchase.

With its built-in intuitive user interface, RGB Fusion 2.0 offers you a better solution for customizing lighting effects across all supported devices. From motherboards and graphics cards to peripheral products, you can customize your gaming machine with your own style and show off your hardware by sharing profiles. In addition, the new Game Mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion App

Don’t just make your computer shine, but make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app, users can see what they’re controlling with the lighting inside their PC. This gives users easy access as they try to adjust the colors and speeds for different modes, all of which can be achieved away from their computer’s keyboard and screen.

B550M AORUS ELITE Advanced Audio Capacitors

GIGABYTE motherboards use advanced audio capacitors. These high quality capacitors help deliver high fidelity and high fidelity sound to provide the most realistic sound effects for gamers.

B550M AORUS ELITE acoustic noise canceling function

GIGABYTE motherboards feature an Audio Noise Guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Ultra durable with B550M AORUS ELITE

Q-Flash Plus
Easily update BIOS without installing CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install CPU, memory, graphics card or go into BIOS menu to update BIOS. Simply download and save a new BIOS file (rename it to gigabyte.bin) to your USB flash drive, hit the button dedicated to Q-Flash Plus and you’re ready to go!

GIGABYTE Patented Dual Lock Bracket

Solid Pin Power Connectors
B550 motherboards feature solid ATX 12V 8pin power connectors to provide a stable power supply during CPU overload.

Advantages of solid power connector
Larger contact area for electricity
More metal to conserve more energy and generate heat
Ultra durable and long life

Starting Sulfur Protection B550M AORUS ELITE

The sulfur compounds in the air can penetrate the small resistors on board, causing a chemical change and causing these resistors to open or short. If any of the above occurs, the motherboard will fail to work. By equipping resistors with an anti-sulfur design, GIGABYTE gives ultra-durable motherboards a whole new meaning.

Gigabyte distinction BIOS and Gigabyte apps

BIOS

New User Interface of B550M AORUS ELITE

All new EASY MODE displays important hardware information on one page including CPU clock, memory, storage and fan.

My Favorite B550M AORUS ELITE

Add frequently used items to your favorites list for quick access.

Storage information of B550M AORUS ELITE

View all kinds of storage information including SATA, PCIE and M.2 interface.
Change
List all changes before saving and exiting the BIOS. Review the global settings modification quickly.

Intuitive loading line curve of the B550M AORUS ELITE

Clearly show each load line calibration setting in an intuitive curve graph.

B550M AORUS ELITE Application Center

GIGABYTE APP CENTER is a useful portal for all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest versions of utilities and drivers.

EasyTune™ from B550M AORUS ELITE

EasyTune™ from GIGABYTE is a simple and easy to use interface that allows users to adjust system settings or adjust system clocks, memory and voltage in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving you extra performance when you need it most.

BIOS of B550M AORUS ELITE

GIGABYTEBIOS allows you to update your system’s BIOS from within Windows using a simple and smooth graphic user interface. The BIOS can download the latest version automatically from GIGABYTE servers, or you can update the BIOS from a file on your computer. BIOS also allows you to save your current BIOS to a file, restore your previous BIOS from an image, and back up your BIOS to an image.

B550M AORUS ELITE System Information Viewer

The Gigabyte System Information Viewer is a central location that allows you to access the current system status. Monitor components such as clocks and processor, set your preferred fan speed profile, create alerts when temperatures rise dramatically or log your system’s behavior; These are the capabilities of the System Information Viewer.

XSplit Gamecaster + Broadcaster:

Broadcast your game anytime and anywhere

Now set up your stage and share your best gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time conversations – keeping you informed with the focus in the game. It only takes one click to broadcast your gameplay to Twitch. Add your game like a pro!

B550M AORUS ELITE motherboard specifications

• CPU
  AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  (Please refer “CPU Support List” for more information.)
• Chipset
  AMD B550
• Memory
  4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  ECC memory (ECC mode) support varies by CPU
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
• Onboard Graphics
  Integrated Graphics Processor:
  1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
  The DVI-D port does not support D-Sub connection by adapter.
  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  Maximum shared memory of 16 GB
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
• LAN
  Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
  AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  Supporting PCIe 3.0 x4 mode
  1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
  Supporting PCIe 3.0 x1 mode
• Storage Interface
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
  Supporting SATA and PCIe 3.0 x2 SSDs
  4 x SATA 6Gb/s connectors, integrated in the Chipset:
  Support for RAID 0, RAID 1, and RAID 10
• USB
  CPU:
  4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  2 x USB 3.2 Gen 1 ports available through the internal USB header
  6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable LED strip headers
  2 x RGB LED strip headers
  1 x CPU cooler LED strip/RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  1 x serial port header
  1 x Clear CMOS jumper
  1 x Q-Flash Plus button
  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
• Back Panel Connectors
  1 x PS/2 keyboard/mouse port
  1 x DVI-D port
  1 x HDMI port
  4 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Overheating warning
  Fan fail warning
  Fan speed control
  Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for APP Center
  Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
  Support for Q-Flash Plus
  Support for Q-Flash
  Support for Xpress Install
• Bundled Software
  Norton® Internet Security (OEM version)
  Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Operating System
  Support for Windows 10 64-bit
• Form Factor
  Micro ATX Form Factor; 24.4cm x 24.4cm
• Remark
  Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Motherboard B550M AORUS ELITE price in Egypt

The global price of the B550M AORUS ELITE motherboard ranges in the range of $175 or its equivalent in local currency

The price of the motherboard B550M AORUS ELITE in Egypt is currently in the middle economic category, which is suitable for most students, employees, companies and professional players
