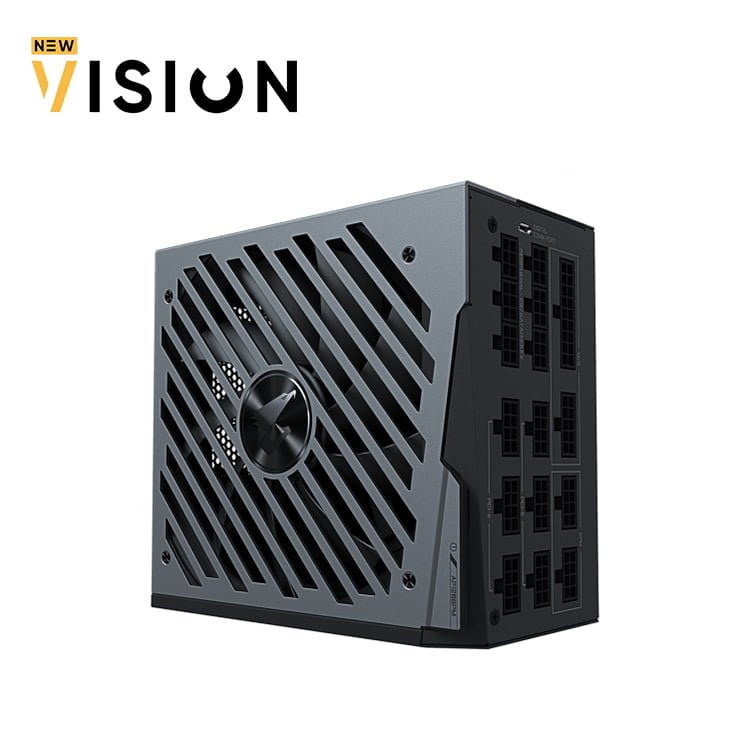

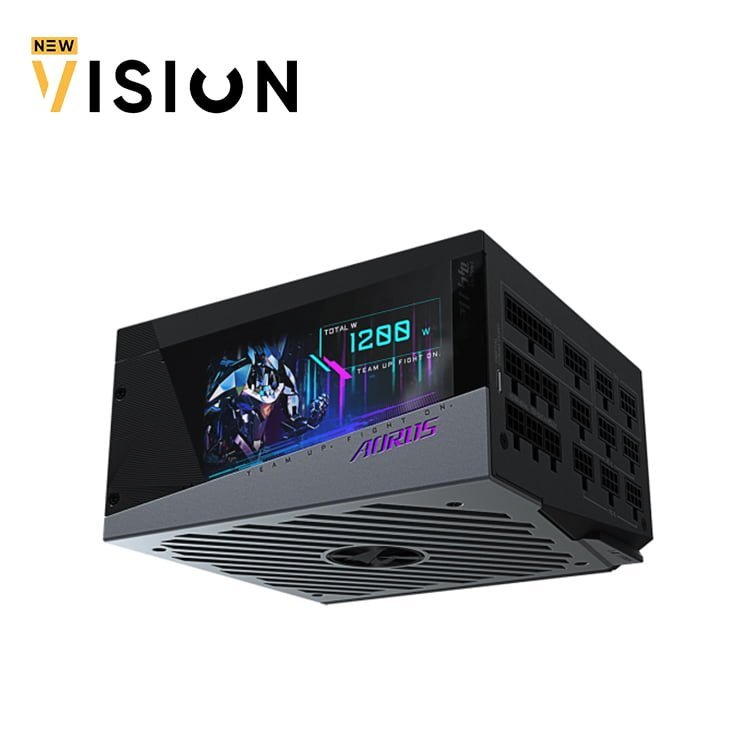

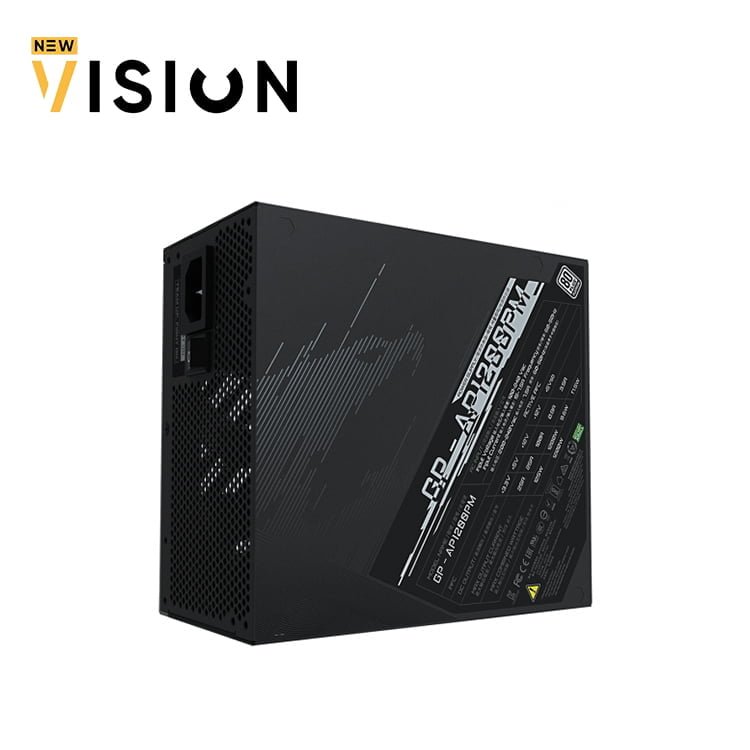

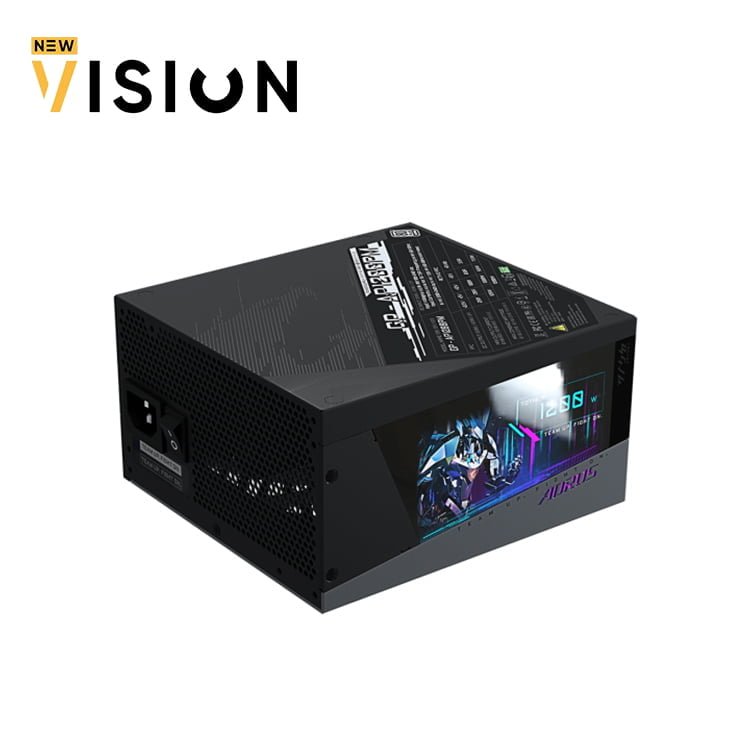

GIGABYTE AORUS P1200w 80+ Platinum Power Supply

AORUS P1200w

Model

GP-AP1200PM
TE AORUS P1200w 80+ Platinum Power Supply
Type

Intel Form Factor ATX 12V v2.31
PFC

Active PFC (>0.9 typical)
Input Voltage

100-240 Vac (full range)
Input Current

15-7.5A
Input Frequency

60-50 Hz
Output Capacity

1200W
Dimension

150 x 160 x 86mm
Fan Type

140mm Double ball bearing Fan
80 PLUS

Platinum
Efficiency

92% at typical load
MTBF

>100,000 hours
Protection

OVP/OPP/SCP/U
VP/OCP/OTP
Power Good Signal

100-150ms
Hold Up Time

>16ms
Cable Type

Flat, All black
Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
SATA x 16 : 650mm+150mm
+150mm+150mm*4
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2
