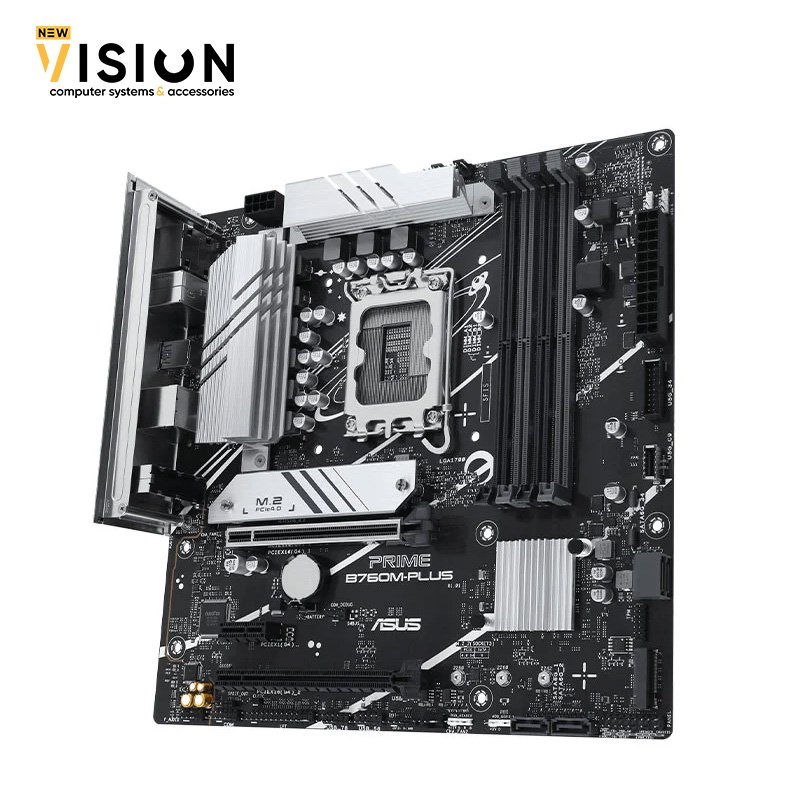

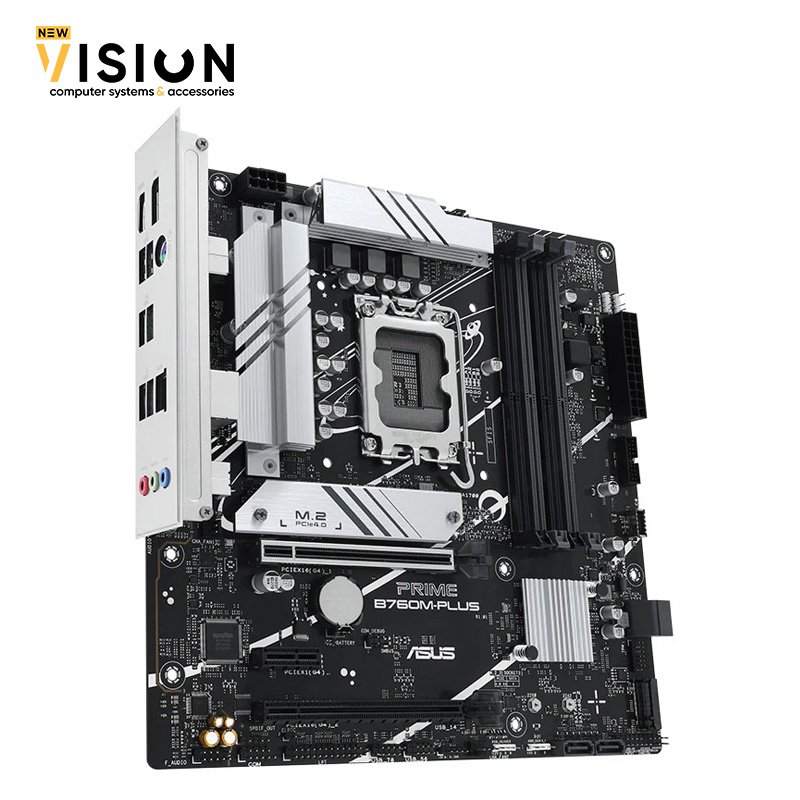

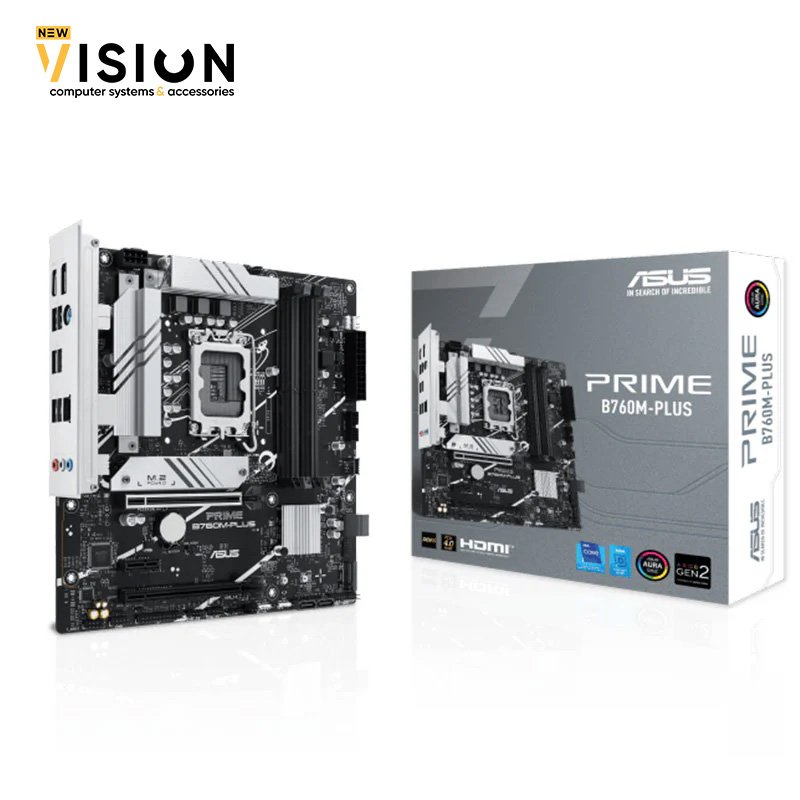

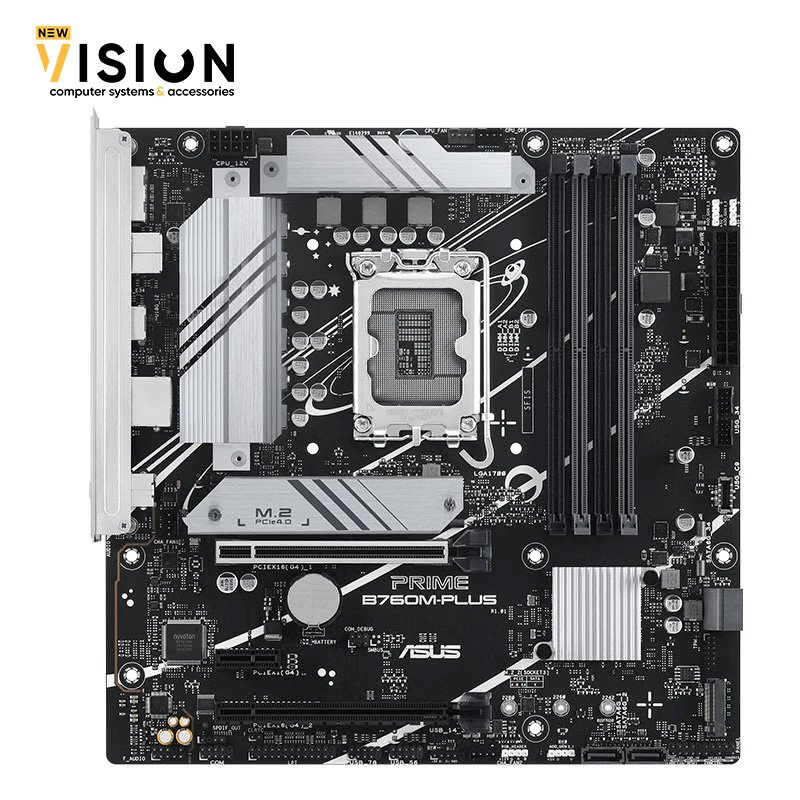

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro-ATX motherboard

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro-ATX motherboard

• Intel^® LGA 1700 Socket: Ready for 13^th and 12^th Gen Intel^® processors
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C^®, front USB 3.2 Gen 1 Type-C^® and Thunderbolt™ (USB4^®) header support
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Model & News:

• Model: PRIME B760M-PLUS
• Update (2024/08/12): New BIOS update available with Intel microcode (0x129), enhancing stability for Intel Core 13th and 14th Gen processors.

CPU Support:

• Socket: Intel® LGA 1700
• Compatible Processors: Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® processors.
• Turbo Boost Support: Intel® Turbo Boost Technology 2.0 & Max Technology 3.0 (depending on the CPU).

Chipset:

• Intel® B760 Chipset

Memory:

• Memory Slots: 4 x DIMM, max 192GB, DDR5
• Supported Speeds (OC): 7200+(OC) to 4800
• Memory Technology: Dual-channel, Intel® XMP, ASUS AEMP II.

Graphics:

• Ports:
  • 1 x DisplayPort (supports 4K@60Hz, DP 1.4)
  • 1 x HDMI™ (supports 4K@60Hz, HDMI 2.1)

Expansion Slots:

• Intel® Core™ Processors:
  • 1 x PCIe 4.0 x16
• Intel® B760 Chipset:
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 4.0 x1

Storage:

• M.2 Slots: 2 x M.2 (PCIe 4.0 x4)
• SATA Ports: 4 x SATA 6Gb/s

Ethernet:

• Realtek 2.5Gb Ethernet

USB Ports:

• Rear USB: 6 ports (2 x USB 10Gbps, 4 x USB 2.0)
• Front USB: 8 ports (1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header, 3 x USB 2.0 headers)

Audio:

• Codec: Realtek 7.1 Surround Sound, supports 24-Bit/192 kHz playback.

Back Panel I/O:

• 2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A)
• 1 x DisplayPort, 1 x HDMI™
• 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Special Features:

• AI Features: Two-Way AI Noise Cancelation, AI Suite 3.
• Cooling: M.2 heatsink, VRM heatsink, Fan Xpert 2+.
• RGB Lighting: Aura Sync, Aura RGB header, Addressable Gen 2 headers.

Software:

• ASUS Exclusive Software: Armoury Crate, Fan Xpert 2+, AURA Sync, AI Suite 3, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial).
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS.

Form Factor:

• Size: micro-ATX, 9.6 x 9.6 inches (24.4 cm x 24.4 cm).

This motherboard is optimized for gaming, AI computing, and high-performance tasks, offering fast connectivity, solid cooling solutions, and RGB customization options for a complete, efficient system setup.
