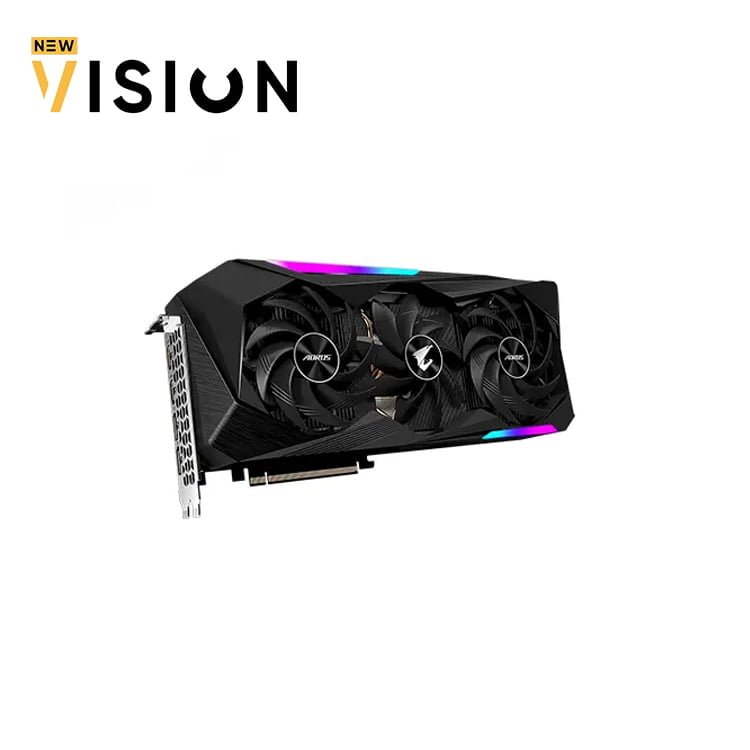

Gigabyte AMD Radeon RX 6900 XT Aorus Master 16GB GDDR6 Graphics Card

RX 6900 XT MASTER 16G

AORUS Radeon RX 6900 XT MASTER 16G graphics card with 16 GB GDDR6 256-bit memory interface with Max encased design to give you the best performance with cooling by adding to the illuminated LCD edges to give a distinctive and modern aesthetic appearance for professional gamers.
With RGB Fusion 2.0 software and dual BIOS as well as a metal backplate
All this with a 4 year guarantee (online registration required)

Features of AORUS Radeon RX 6900 XT MASTER 16G Card

classy design

In the AORUS dimension, everything is created digitally. The lighting and patterns on the products are set in an efficient and free flowing style.
Welcome to the era of digital code.

Maximum Coverage Cooling

The Max-Covered Cooling System features unique 2x 115mm and 1x 100mm blade stack fans with alternate spin and wind clutch design, so the air pressure can cover the entire heatsink.

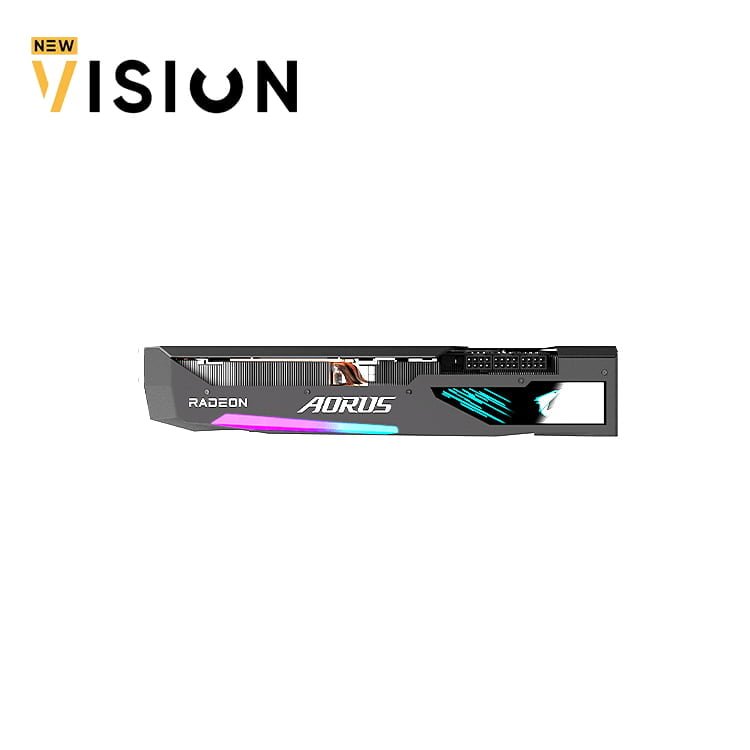

LCD EDGE VIEW

The LCD screen displays not only graphics card information, but also many favorite text, images, and GIF files. You can also adjust lighting effects via RGB FUSION 2.0 software.

RGB FUSION 2.0.0 Update

With 16.7 million customizable color options and numerous lighting effects, you can choose lighting effects or sync with other AORUS devices.

best performance

The Radeon™ RX 6900 XT features 5120 streaming processors, powerful new compute units and all-new AMD Infinity cache combined with up to 16GB of dedicated GDDR6 memory, delivering incredibly high frame rates and serious levels of 4K gaming resolution.

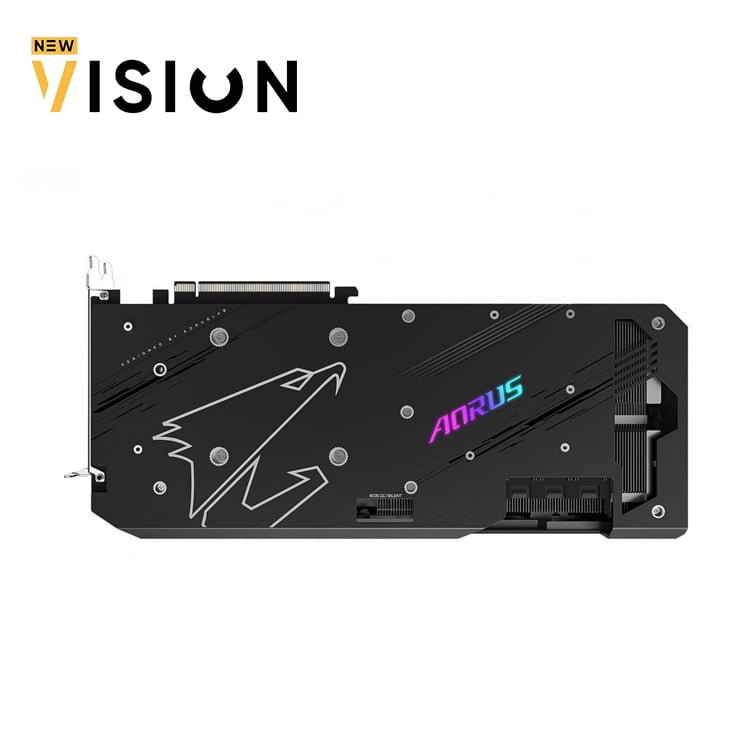

metal back plate

The metal back panel not only provides the aesthetics, but also enhances the graphics card architecture to provide complete protection.
Silent mode will provide a quieter experience. The mode switch is restarted until it is activated. The default mode is OC mode.

Long life

Excellent circuit design with high-quality materials, not only increases the excellence of the GPU, but also maintains stable and long-term operation.

AORUS Radeon RX 6900 XT MASTER 16G . Specifications

• Graphics Processing
  Radeon™ RX 6900 XT
• Core Clock
  Boost Clock* : up to 2365 MHz (Reference card: 2250 MHz)
  Game Clock* : up to 2135 MHz (Reference card: 2015 MHz)
• Stream Processors
  5120
• Process Technology
  7 nm
• Memory Clock
  16000 MHz
• Memory Size
  16 GB
• Memory Type
  GDDR6
• Memory Bus
  256 bit
  Memory Bandwidth (GB/sec)
  512 GB/s
• Card Bus
  PCI-E 4.0 x 16
• Digital max resolution
  7680×4320
• Multi-view
  4
• Card size
  L=322 W=140 H=60 mm
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  850W
• Power Connectors
  8 pin*3

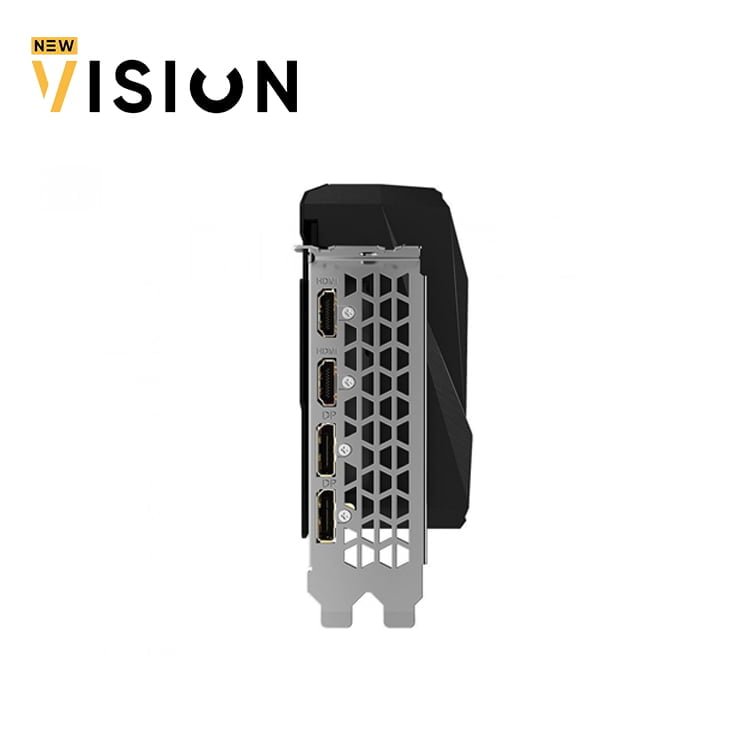

• Output
  DisplayPort 1.4a *2
  HDMI 2.1 *2
• Accessories
  1. Quick guide
  2. 4-year warranty registration
  3. Metal sticker
• Note
  * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
  * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
