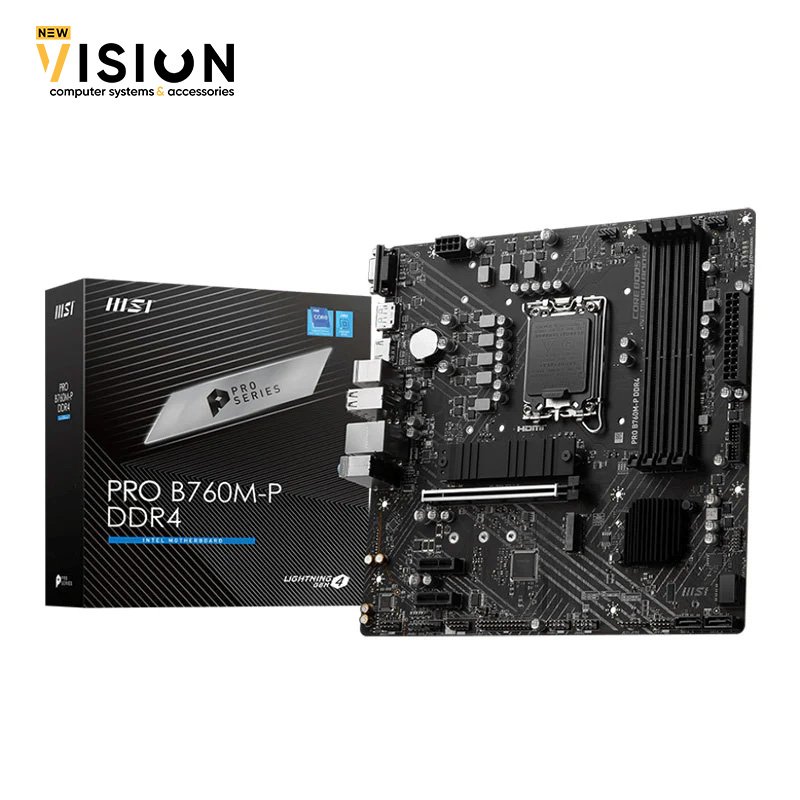

MSI PRO B760M-P DDR4 Motherboard

MSI PRO B760M-P DDR4 Motherboard

Key Features:

1. Processor Support:

   • Compatible with 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.

   • Uses the LGA 1700 socket.

2. Memory Support:

   • Supports up to 4x DDR4 slots with a maximum capacity of 128GB.

   • Memory speeds:

     • 4800+ MHz (OC) for 1DPC (1 Rank per Channel).

     • 4600+ MHz (OC) for 1DPC 2R (Dual Rank per Channel).

     • Lower speeds for dual-channel configurations (e.g., 3200 MHz to 2133 MHz).

   • Dual-Channel support, and supports Intel XMP for overclocking.

3. Performance Enhancements:

   • Core Boost for improved performance with multi-core processors.

   • Memory Boost for better stability and performance via advanced signal transmission.

4. Lightning Fast Experience:

   • PCIe 4.0 support for high-speed data transfer.

   • M.2 Shield Frozr with Gen4 x4 M.2 slot for faster SSDs.

5. Audio Boost:

   • High-quality audio designed for an immersive gaming or media experience.

6. Steel Armor:

   • Protection for VGA cards against bending and electromagnetic interference (EMI), which helps to improve performance and stability.

Connectivity and Graphics:

• Onboard Graphics:

  • 1x HDMI (supports 4K resolution at 30Hz).

  • 1x DisplayPort (supports 4K resolution at 60Hz).

  • 1x VGA (supports resolutions up to 2048×1536 at 50Hz).

  • Note: Graphics outputs require a processor with integrated graphics.

Chipset:

• Powered by the Intel B760 chipset, which offers a solid foundation for performance and compatibility.
