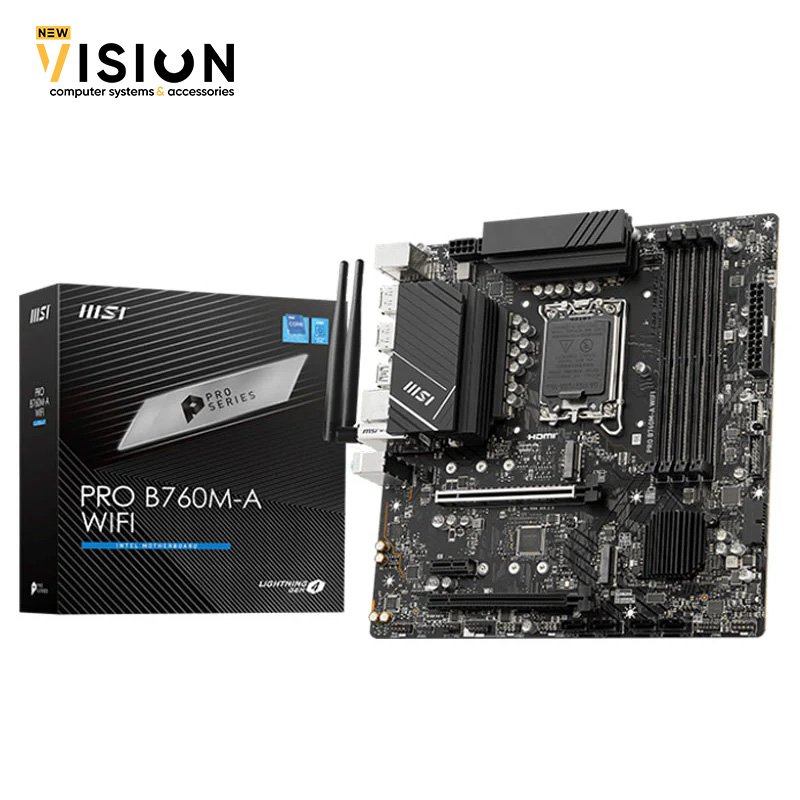

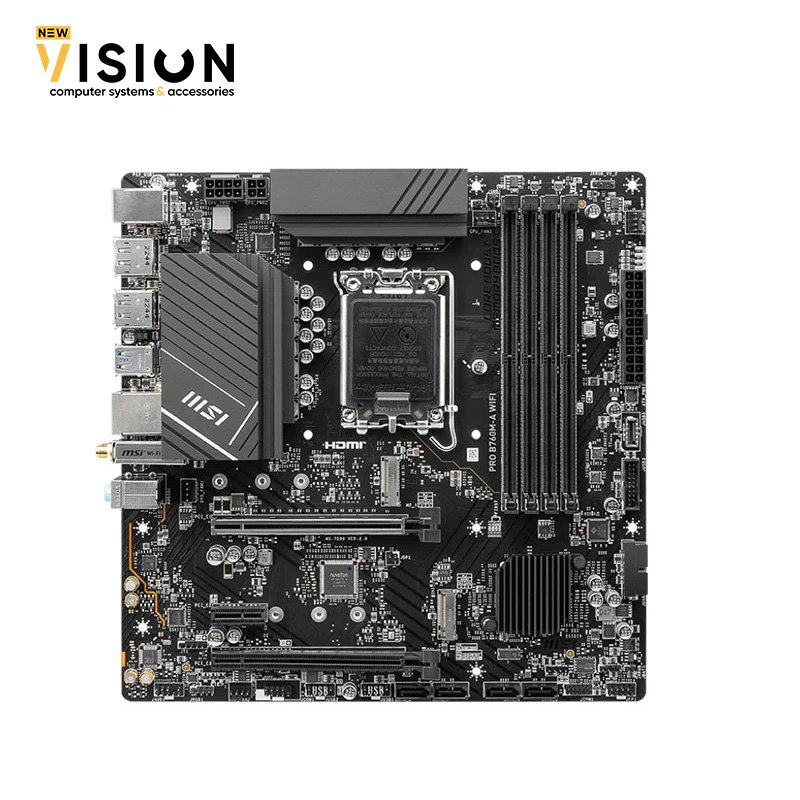

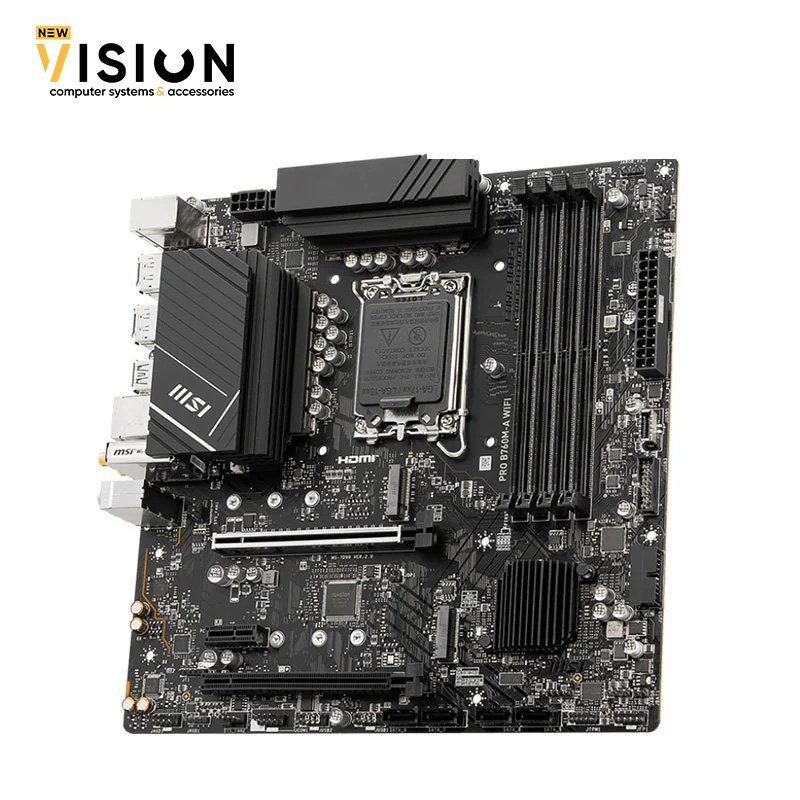

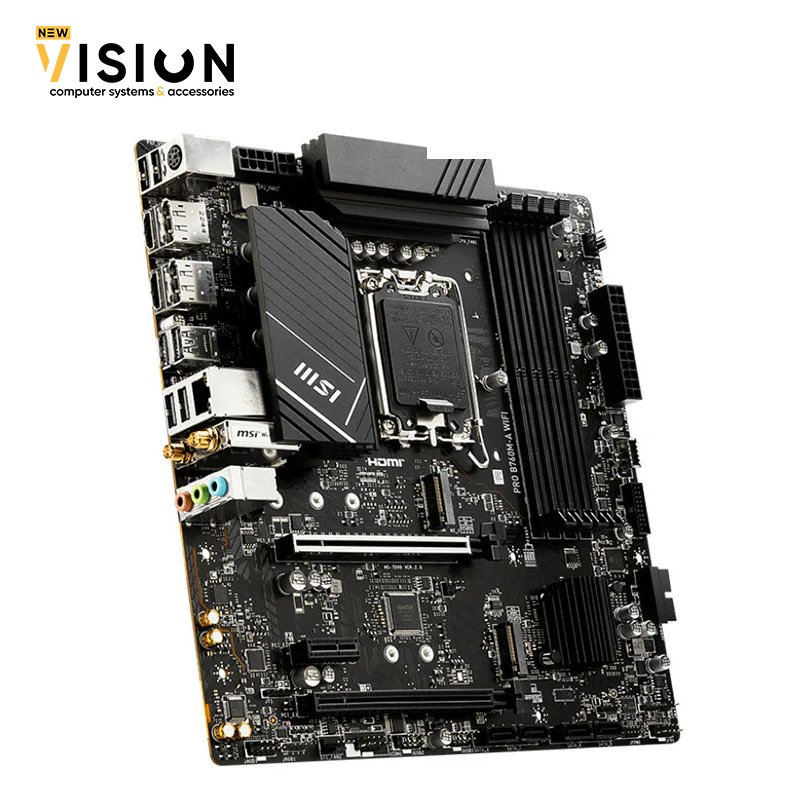

MSI PRO B760M-A WIFI Motherboard

The MSI PRO B760M-A WIFI is a micro-ATX motherboard designed for Intel’s 12th, 13th, and 14th Gen processors (LGA 1700 socket). It is part of MSI’s PRO series, which is aimed at business and productivity users but also offers solid features for general use and light gaming. Below is an overview of its key features and specifications:

Key Features

1. Chipset: Intel B760
   • Supports Intel Core processors (12th, 13th, and 14th Gen).
   • Overclocking support for memory (RAM) but not for CPUs (non-K series CPUs are locked).
2. Form Factor: Micro-ATX
   • Compact size suitable for smaller builds while still offering a good range of features.
3. Memory Support:
   • 4 x DDR4 DIMM slots (non-ECC, unbuffered).
   • Supports dual-channel memory.
   • Maximum memory capacity: 128GB.
   • Memory speeds supported: Up to DDR4 5333+ MHz (OC).
4. Expansion Slots:
   • 1 x PCIe 4.0 x16 slot (for GPU).
   • 1 x PCIe 3.0 x16 slot (runs at x4 mode).
   • 1 x PCIe 3.0 x1 slot.
5. Storage Options:
   • 2 x M.2 slots (Key M) for NVMe SSDs:
     • 1 x PCIe 4.0 x4.
     • 1 x PCIe 3.0 x4.
   • 4 x SATA III ports (6 Gbps) for traditional SSDs/HDDs.
6. Networking:
   • Wi-Fi 6E (802.11ax) for high-speed wireless connectivity.
   • 2.5G LAN (Realtek RTL8125BG) for fast wired networking.
7. Rear I/O Ports:
   • 1 x HDMI port.
   • 1 x DisplayPort.
   • 4 x USB 3.2 Gen 2 Type-A ports.
   • 2 x USB 2.0 Type-A ports.
   • 1 x USB 3.2 Gen 2×2 Type-C port.
   • 1 x 2.5G LAN port.
   • Wi-Fi antenna connectors.
   • Audio jacks (5 x 3.5mm).
8. Audio:
   • Realtek ALC897 codec.
   • 7.1-channel HD audio.
9. Cooling and Power Design:
   • Extended heatsink design for VRM cooling.
   • 6+1+1 Duet Rail Power System for stable power delivery.
10. Other Features:
    • BIOS Flashback button for easy firmware updates.
    • RGB lighting support (via headers).
    • Multiple fan headers for system cooling.
