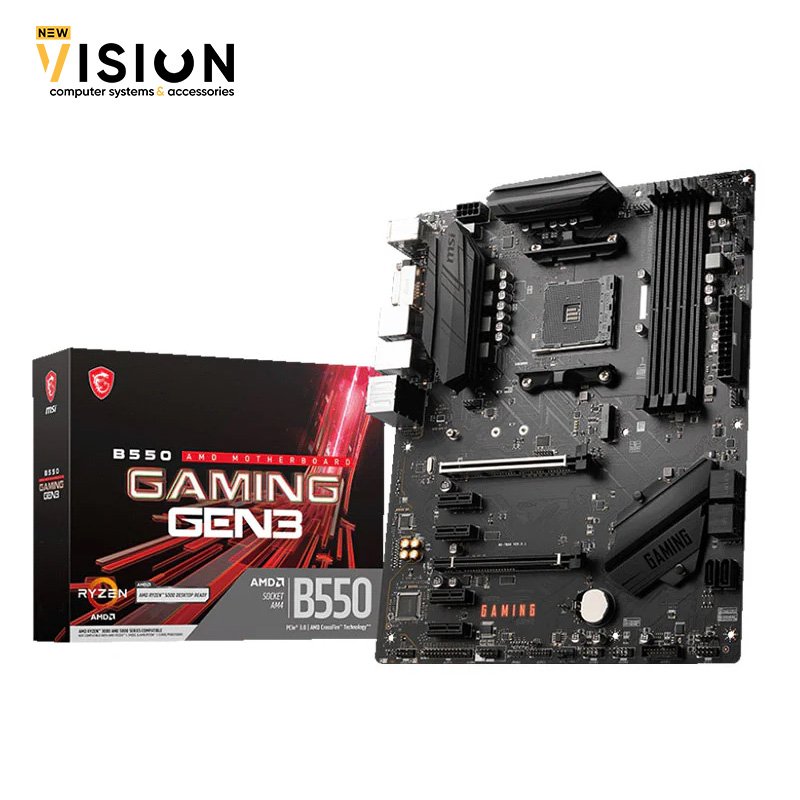

MSI B550 Gaming GEN3 Gaming Motherboard

Key Features of the MSI B550 Gaming Gen3 Motherboard:

• Processor Support:

  • Compatible with AMD Ryzen 5000 & 3000 Series desktop processors.

  • Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G processors.

  • Also supports AMD Ryzen 4000 G-Series desktop processors.

• Memory Support:

  • Supports DDR4 Memory with speeds up to 4400 MHz (OC).

  • Dual memory channels with a total of 4 DIMM slots.

  • Maximum supported memory: 128GB.

• Storage:

  • 6x SATAIII ports (6 Gbps each).

  • 1x M.2 slot supporting Turbo M.2 Gen3 x4 for faster storage.

  • RAID support: 0, 1, 10.

• Audio:

  • Dedicated High Definition Audio Processor for pure sound quality in both stereo and surround sound.

  • High-quality audio capacitors for exceptional acoustics.

  • HD Audio Connectors and High-Quality Audio Jacks to ensure clean digital signal transmission.

  • Audio Boost for studio-grade sound quality.

• Connectivity:

  • USB 3.2 Gen 2 for faster data transfer.

  • Flash BIOS Button with an optimized Clear CMOS function (easy BIOS update with a USB key and reset to default settings).

• Power Design:

  • Enhanced power design with Core Boost and DDR4 Boost for stability and performance.

• Multi-GPU Support:

  • STEEL ARMOR PCI-E slots supporting AMD Crossfire for multi-GPU setups.

• Expansion Slots:

  • 2x PCIe x16 slots (for GPUs or expansion cards).

  • 4x PCIe x1 slots for other add-in cards.

• TPM (Trusted Platform Module):

  • 1x TPM header for added security.

• Socket and Chipset:

  • AM4 socket.

  • AMD B550 chipset.

• USB Ports (Front Panel):
