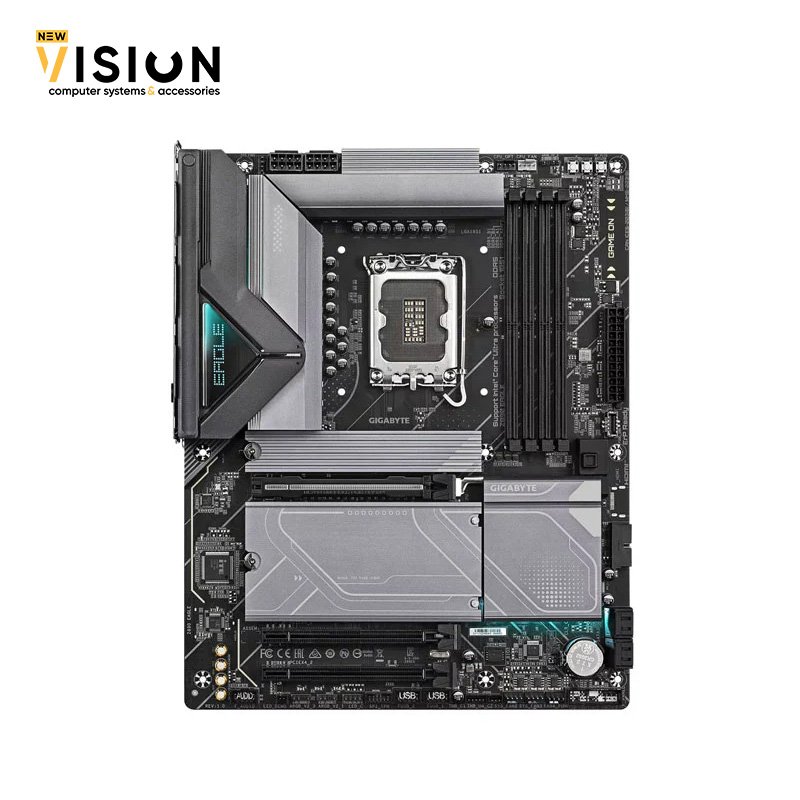

GIGABYTE Z890 EAGLE 4xDDR5 LGA1851 ATX Motherboard

The GIGABYTE Z890 EAGLE is a high-performance ATX motherboard designed for Intel’s next-generation Core Ultra processors using the LGA1851 socket. Powered by the Intel Z890 chipset, this board delivers cutting-edge features, excellent expansion options, and reliable stability—making it ideal for gaming, creative work, and demanding computing tasks.

Memory Support:

Supports DDR5 memory modules with speeds up to 8800MT/s (overclocked).
Equipped with 4 DIMM slots supporting up to 256GB total memory.
Dual-channel memory architecture for increased bandwidth and performance.
Compatible with ECC (unbuffered, non-ECC mode) and non-ECC memory.
Supports Intel XMP profiles for easy overclocking and performance tuning.

Integrated Graphics Support:

When using a processor with integrated graphics, the board provides:

• 1 x USB4 Type-C port with DisplayPort 2.1 support (up to 3840×2160 @ 144Hz)

• 1 x DisplayPort 2.1 (same resolution and refresh rate support)

Expansion Slots:

• 1 x PCIe 5.0 x16 slot (ideal for graphics cards or high-speed NVMe SSDs)

• 2 x PCIe 4.0 x4 slots (for additional expansion cards such as network or sound cards)

Storage Options:

Comes with 4 M.2 slots and 4 SATA 6Gb/s ports, allowing for flexible and high-speed storage setups:

• 1 x M.2 PCIe 5.0 x4

• 2 x M.2 PCIe 4.0 x4

• 1 x M.2 supporting both PCIe 4.0 x4 and SATA
  RAID support: RAID 0, 1, 5, 10 for both NVMe and SATA drives.
