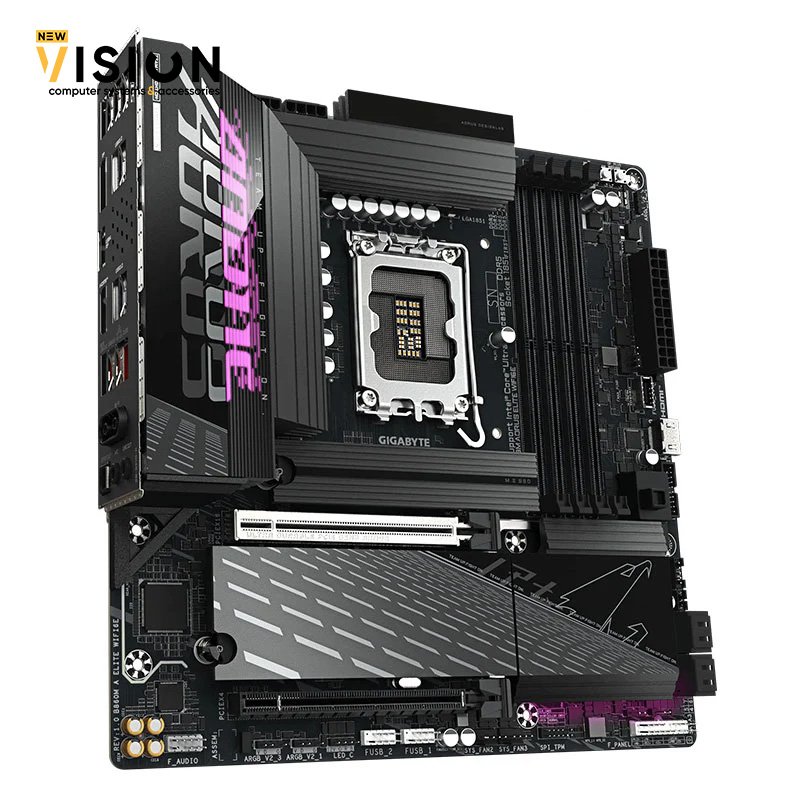

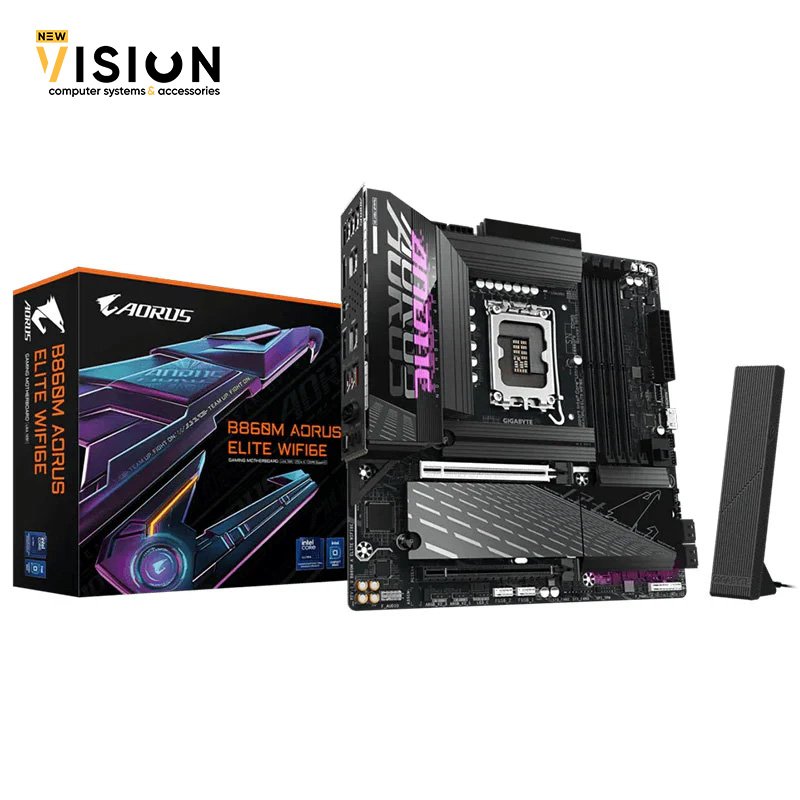

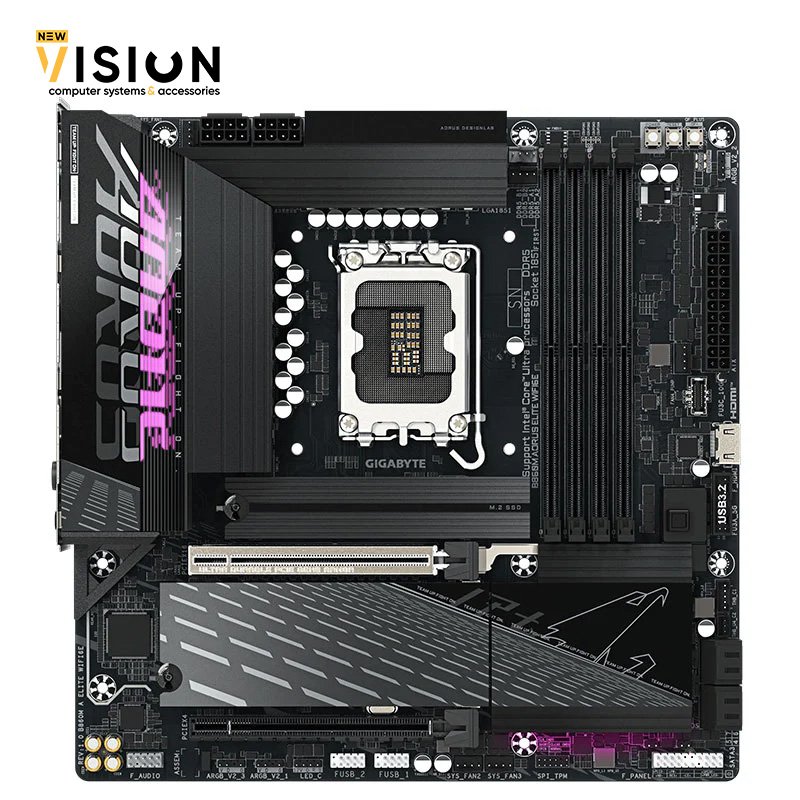

GIGABYTE B860M AORUS ELITE WIFI6E MOTHERBOARD

The Gigabyte B860M AORUS ELITE WIFI6E is a high-performance motherboard designed for Intel Core Ultra processors. With support for cutting-edge features, including DDR5 memory and Wi-Fi 6E, it delivers excellent connectivity and expansion options, making it ideal for both gamers and power users.

Key Features

• • CPU Support:

    • LGA1851 socket for Intel Core Ultra Processors (supports the latest generation of Intel CPUs).

    • L3 cache size varies depending on the CPU.

  • Chipset:

    • Intel B860 Express Chipset, providing robust performance and stability.

  • Memory:

    • 4 x DDR5 DIMM slots, supporting up to 256GB of memory (64GB per DIMM).

    • Memory speeds supported (OC): 9200, 8800, 8600, 8400, 8266, 8200, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 5600 MT/s.

    • Dual-channel memory architecture.

    • Supports ECC Un-buffered DIMM and XMP for enhanced memory performance.

  • Integrated Graphics:

    • Intel HD Graphics with support for multiple display outputs.

    • 1 x USB4 Type-C port (supports DisplayPort video output up to 3840×2160 @ 144Hz).

    • 1 x DisplayPort (supports up to 3840×2160 @ 144Hz).

    • 1 x HDMI port (supports up to 4096×2160 @ 60Hz, HDMI 2.1).

    • 1 x front HDMI port (up to 1920×1080 @ 30Hz).

    • Support for up to quad-display at the same time.

  • Networking:

    • Realtek 2.5GbE LAN chip (supports speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps).

    • Intel Wi-Fi 6E AX211 for faster wireless communication (supports Wi-Fi 6E standards).

  • Expansion Slots:

    • 1 x PCIe x16 slot (supports PCIe 5.0 running at x16).

    • 1 x PCIe x16 slot (supports PCIe 4.0 running at x4).

  • Storage:

    • M.2 connectors (supporting PCIe 5.0 and 4.0 SSDs).

    • 4 x SATA 6Gb/s connectors for additional storage options.

    • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices.

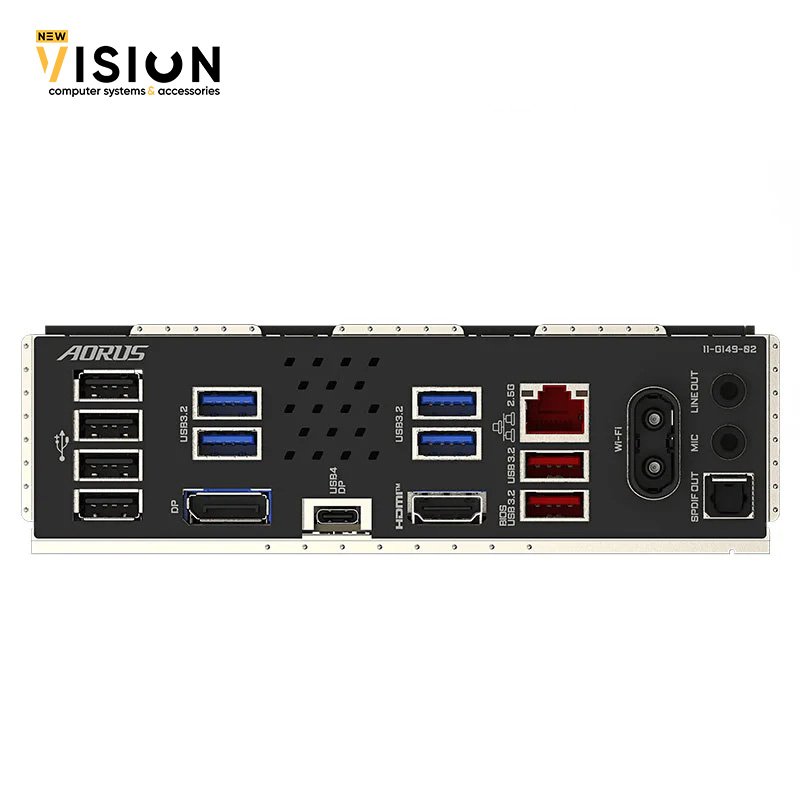

  • USB Ports:

    • 1 x USB4 Type-C port on the back panel.

    • 2 x USB 3.2 Gen 2 Type-A ports (on the back panel).

    • 4 x USB 3.2 Gen 1 ports (back panel + internal headers).

    • 8 x USB 2.0/1.1 ports (4 on the back panel + 4 via internal headers).
