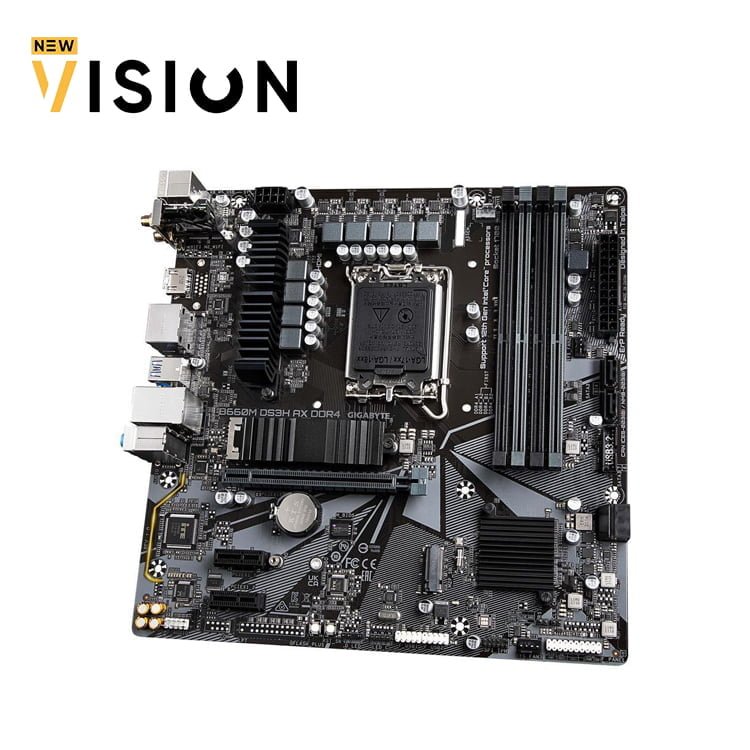

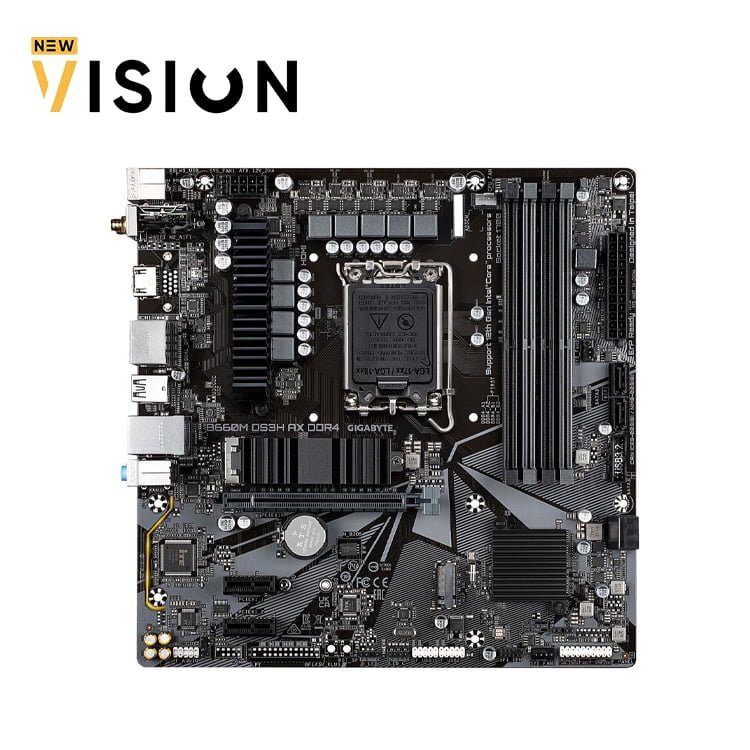

Gigabyte B660M DS3H DDR4

Features of Gigabyte B660M DS3H DDR4 Motherboard

Gigabyte B660M DS3H DDR4, Intel LGA 1700 M-ATX Motherboard

Supports 12th generation Intel® Core™ processors
Dual Channel DDR4 Non-ECC Memory, DDR4 4 DIMM
6 + 2 + 1 Stages Hybrid Digital VRM with MOS . Heatsink
2.5G LAN with Bandwidth Management
Dual SuperSpeed ​​NVMe PCIe 4.0 x4 M.2 with Thermal Protection
SuperSpeed ​​USB 3.2 Gen 2 Rear TYPE-C® port for fast, versatile connections
High quality audio capacitors and Audio Noise Reduction
RGB FUSION 2.0 software supports addressable LED and RGB LED strips
Smart Fan 6 features multiple temperature sensors, and hybrid fan connections with FAN STOP
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

6 + 2 + 1 low phase RDS (on) MOSFETs
Solid capacitors to improve transient response and reduce oscillation
8-pin solid CPU power connector

M.2 Thermal Shield with Gigabyte B660M DS3H DDR4

GIGABYTE Ultra Efficient M.2 Thermal Protection
With durability in mind, GIGABYTE offers a thermal solution for M.2 SSDs. M.2 Heat Shield prevents throttling and throttling from high-speed M.2 SSDs as it helps dissipate heat before it becomes a problem.
Thermal suffocation with high temperature

The first on-board 2.5G LAN user

2X FASTER THAN EVER
2.5G LAN adoption provides network connectivity of up to 2.5Gb, with transfer speeds at least twice as fast as public 1GbE networks, ideally designed for gamers with the ultimate online gaming experience.

Support Multi-Gig (10/100/1000/2500Mbps) RJ-45 Ethernet

Q-Flash Plus with Gigabyte B660M DS3H DDR4

Easily update BIOS without installing CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install CPU, memory, graphics card or go into BIOS menu to update BIOS. Simply download and save a new BIOS file (rename it to gigabyte.bin) to your USB flash drive, hit the button dedicated to Q-Flash Plus and you’re ready to go!
