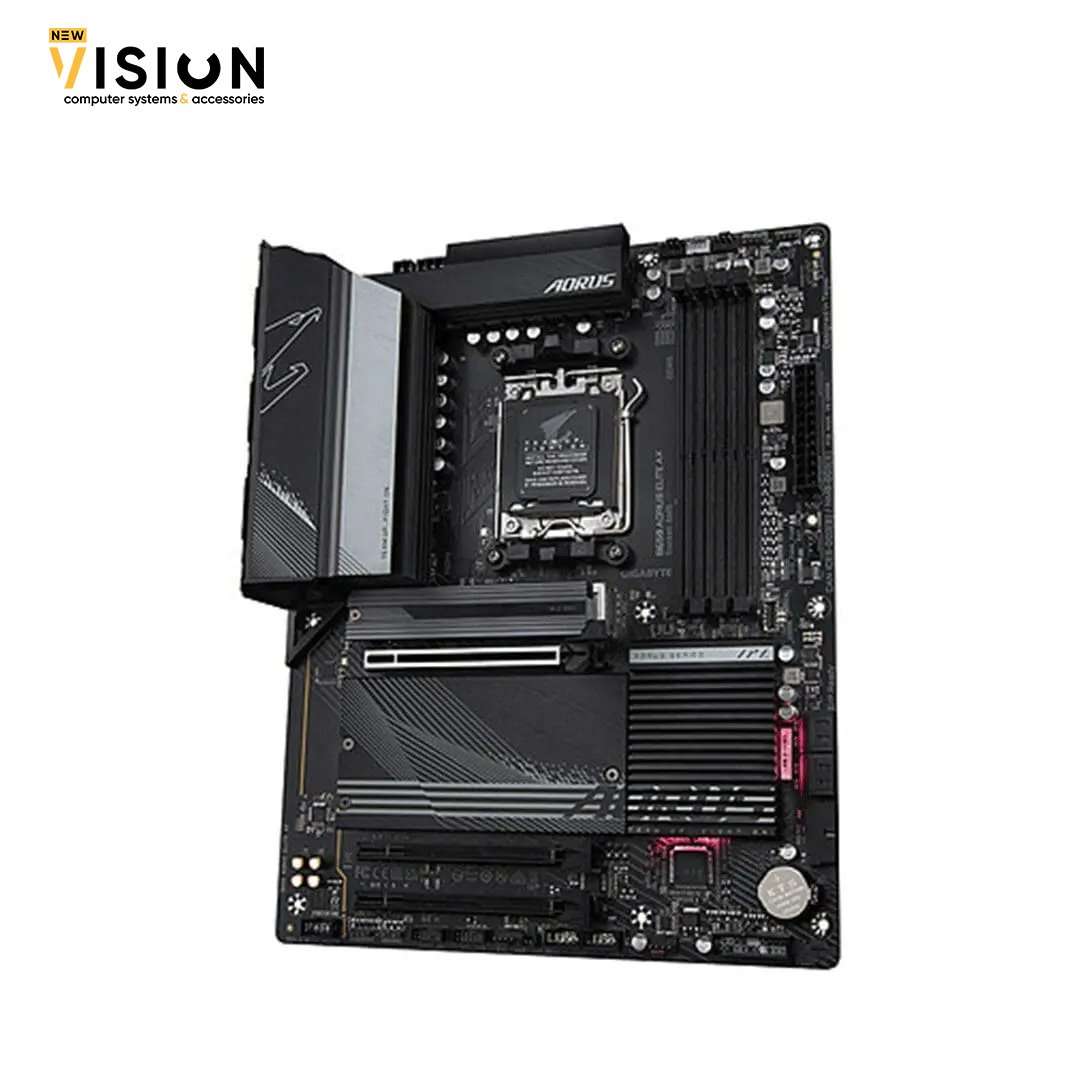

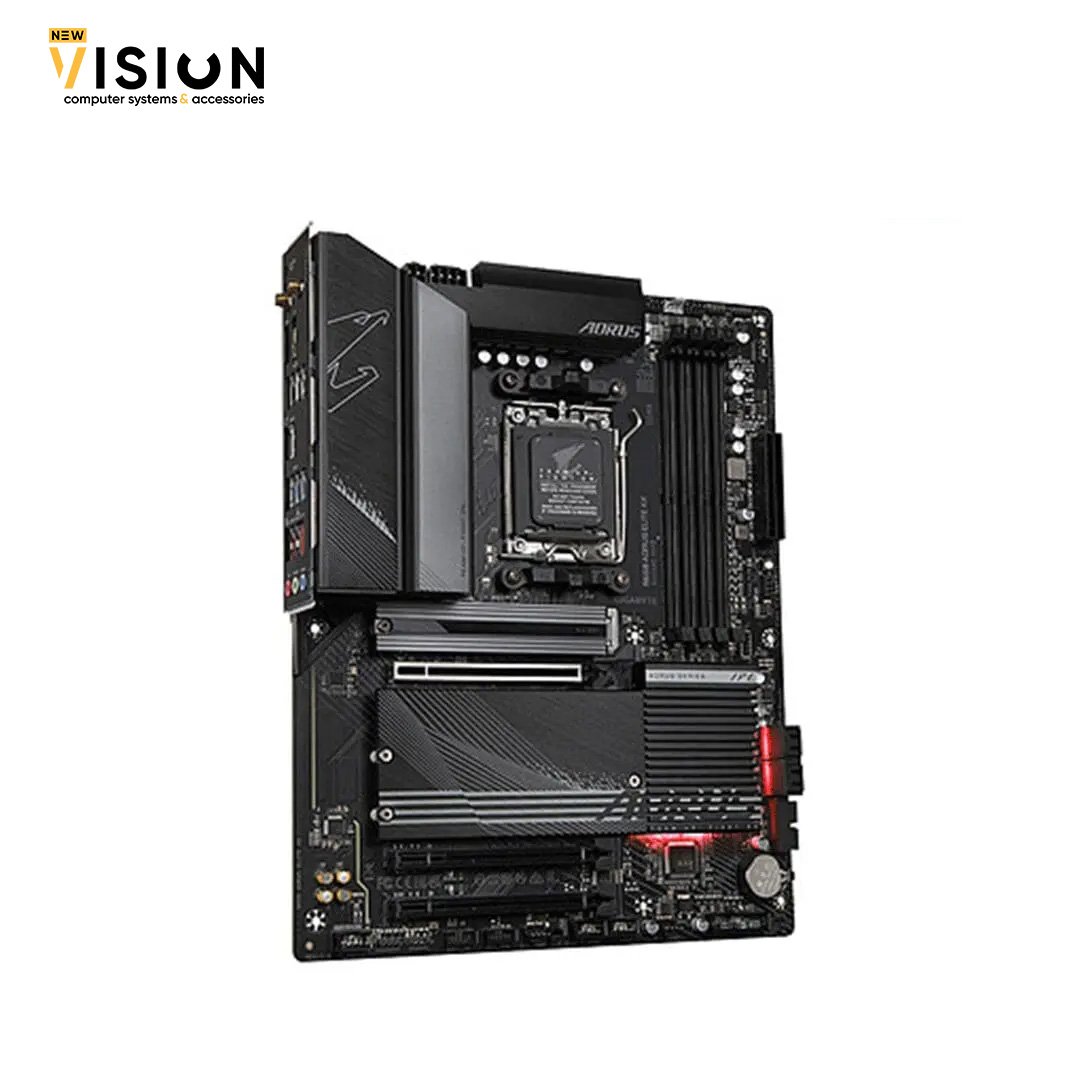

Gigabyte B650M Aorus Elite AX Motherboard

• CPU

  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

  (Please refer “CPU Support List” for more information.)

• Chipset

  1. AMD B650

• Memory

  1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
     * Support for DisplayPort 1.4 version and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

  Features of the Gigabyte B650M AORUS ELITE AX motherboard

  A NEW ERA IS COMING
  DAYBREAK HOUR
  B650M AORUS ELITE AX

  Unparalleled performance
  Dual digital VRM design
  PCIe 5.0 design
  EXPO and XMP support
  OC directory
  With the fast-moving technological changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with an upgraded power solution, the latest storage standards and premium connectivity to enable enhanced gaming performance.

• Audio

  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out

• LAN

  1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  Intel^® Wi-Fi 6E AX210 (For PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
     * Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

  Chipset:

  1. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

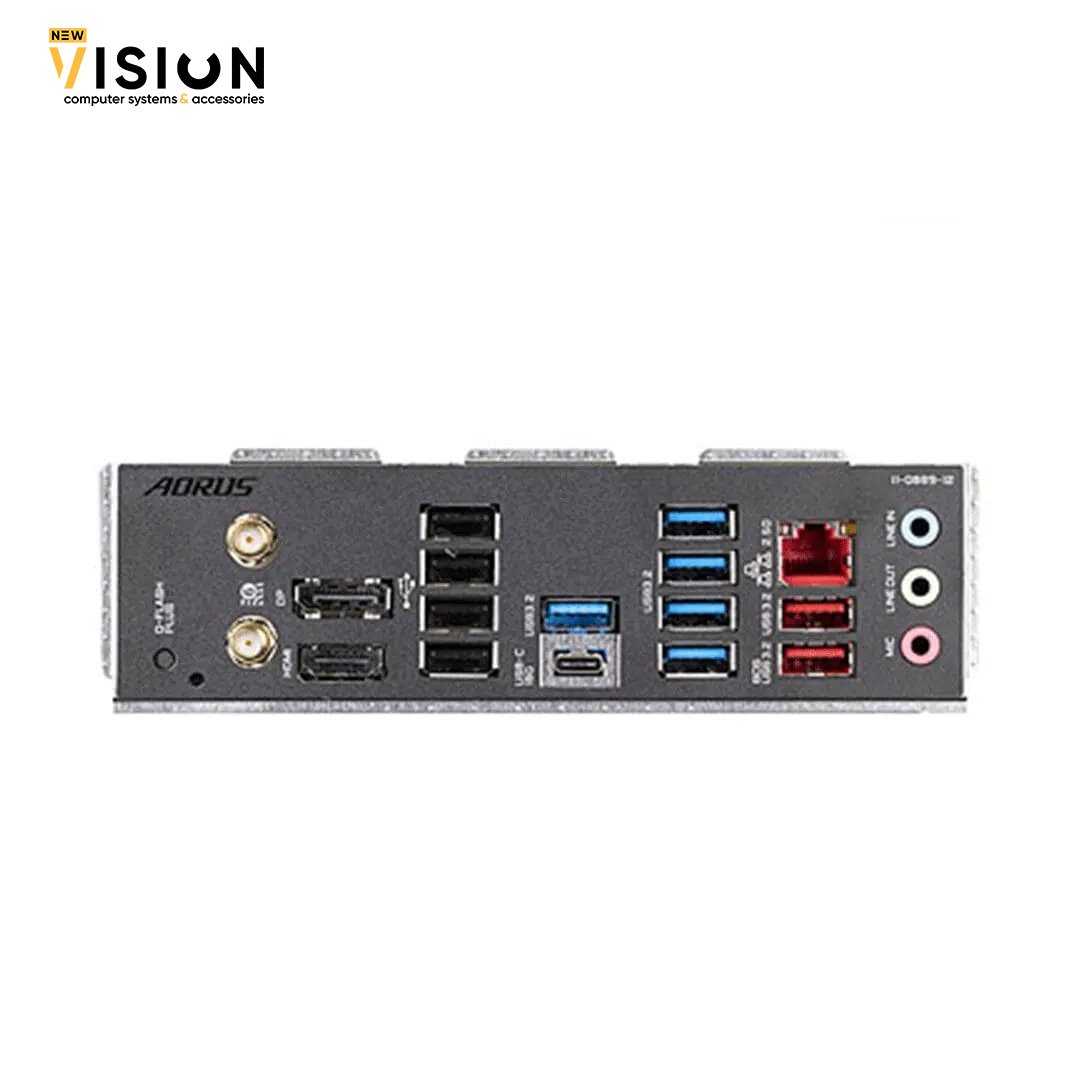

• USB

  CPU:

  1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C^® port with USB 3.2 Gen 2×2 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back pane
• B650M Aorus Elite AX
