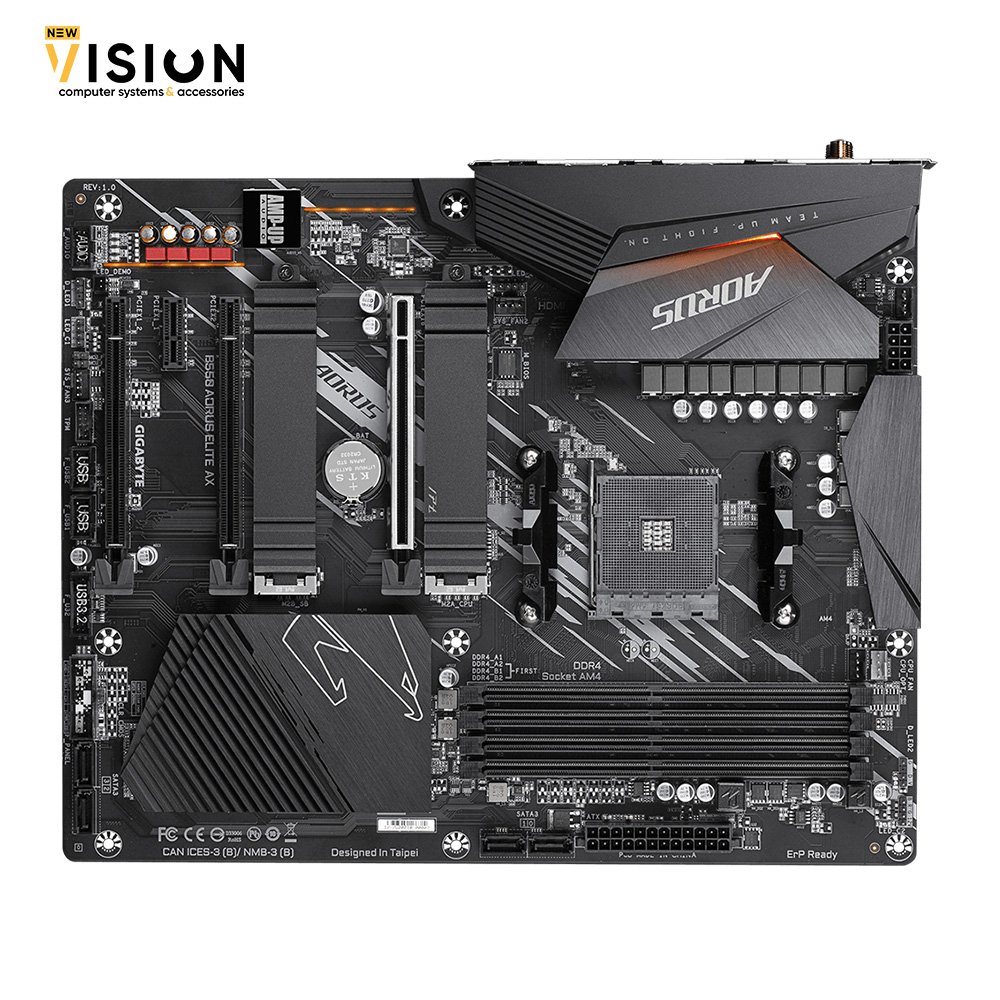

GIGABYTE B550 AORUS ELITE AX Motherboard
8.600,00 EGP
- Model: B550 Aorus Elite AX
- AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- Onboard Intel Wi-Fi 6 802.11ax
- True 12+2 Phases Digital VRM
- Blazing Fast 2.5GbE LAN
غير متوفر في المخزون
الوصف
GIGABYTE B550 AORUS ELITE AX Motherboard
B550 AORUS ELITE AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components,
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor: 30.5cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode – 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: – Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: – 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs – 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: – Supporting SATA and PCIe 3.0 x4/x2 SSDs |
|
B550 AORUS ELITE AX
معلومات إضافية
| Brand |
GIGABYTE |
|---|---|
| Motherboard brand |
Gigabyte |
| Motherboard type |
AMD |
