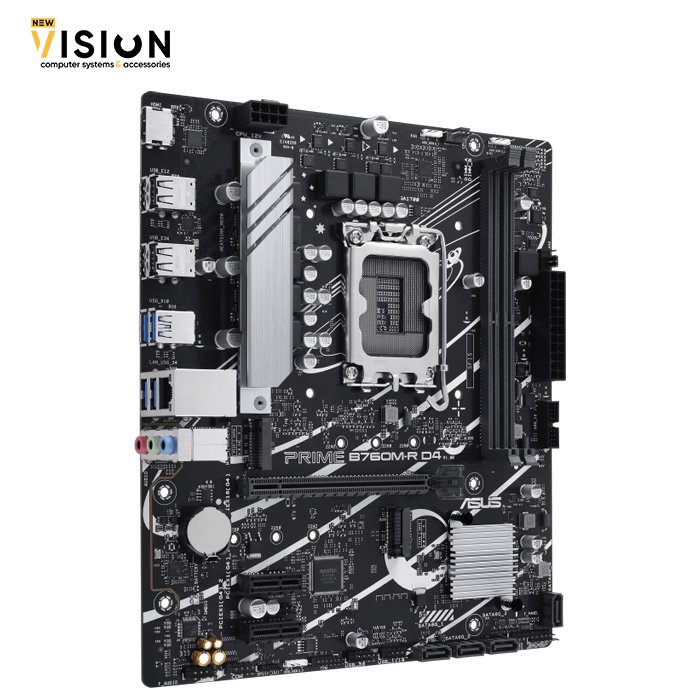

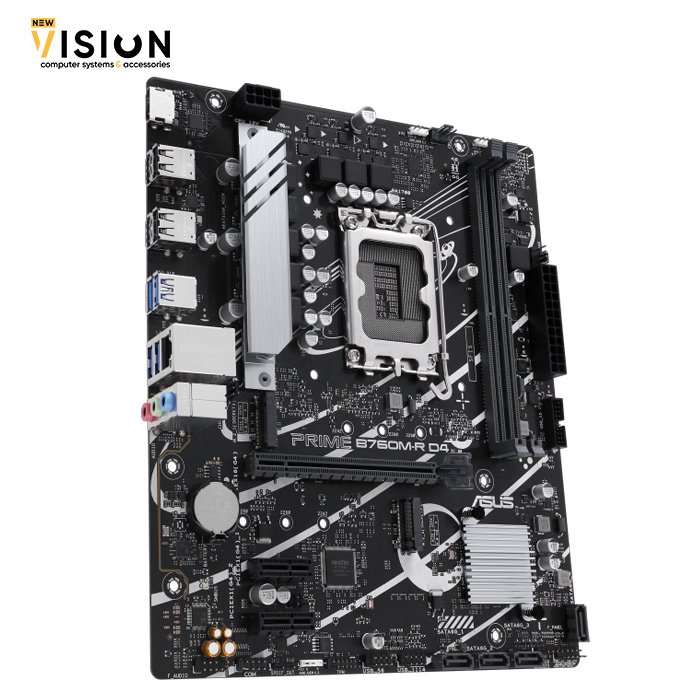

The ASUS PRIME B760M-R D4 is a micro ATX motherboard designed for building PCs with 14th Gen, 13th Gen, and even 12th Gen Intel Core processors, including Pentium Gold and Celeron processors. It offers a good balance of features and affordability for mainstream users. Here’s a closer look at its key features:

CPU Support:

• LGA1700 socket: Compatible with latest 14th Gen, 13th Gen, and 12th Gen Intel Core processors, Pentium Gold, and Celeron processors.

Chipset:

• Intel® B760 Chipset: Provides core functionality for the CPU with overclocking headroom for performance enthusiasts.

Memory:

• 4 x DIMM DDR4 slots: Supports up to 128GB of DDR4 memory with speeds up to 5333 MHz (overclocked).

Storage:

• 2 x M.2 slots (Key M, 2260/2280): Supports PCIe 4.0 x4 for high-speed storage using NVMe SSDs.
• 4 x SATA 6Gb/s ports: Allows connection of traditional SATA hard drives and SSDs.

Graphics:

• 2 x PCIe 4.0 x16 slots (x16 or dual x8): Offers flexibility for powerful graphics card configurations in single or dual GPU setups (depending on the configuration).

Networking:

• Realtek 2.5Gb Ethernet: Delivers faster wired network connections compared to standard Gigabit Ethernet.

Audio:

• 8-channel Realtek ALC887 audio codec: Provides decent onboard audio quality for casual use.

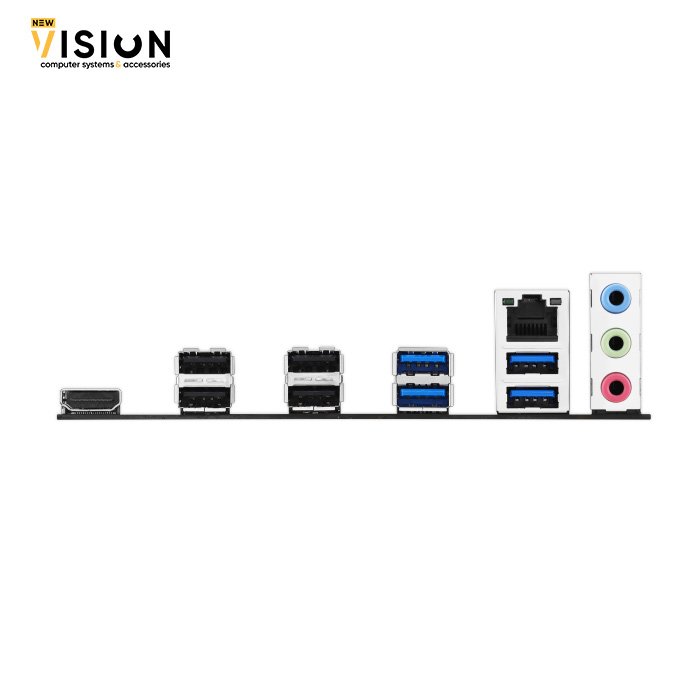

Connectivity:

• Rear USB ports (mix of USB 3.2 Gen 2 and Gen 1)
• Front panel USB connectors (including USB 3.2 Gen 1 Type-C)
