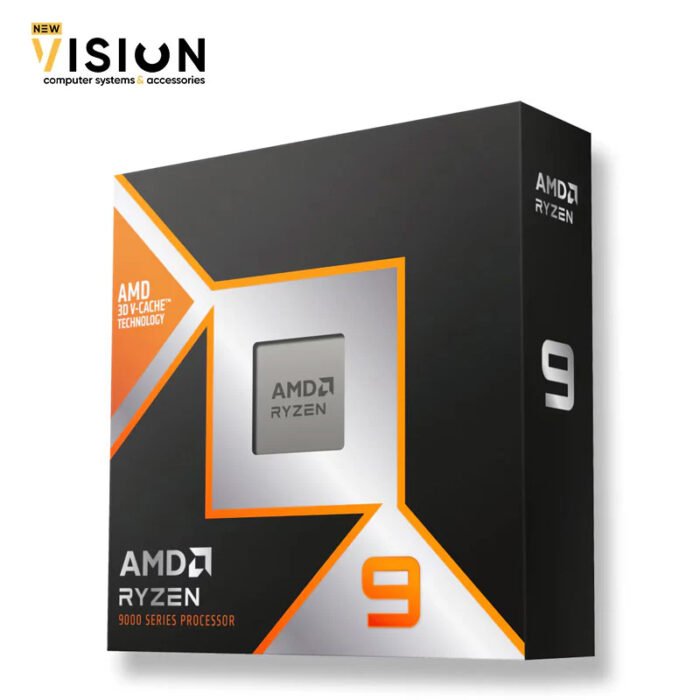

AMD Ryzen 9 9950X3D Gaming and Content Creation Processor

The AMD Ryzen 9 9950X3D Processor is the ultimate 16-core desktop CPU that can do it all with incredible performance for the most demanding gamers and creators. Leveraging the power of Zen 5 architecture and featuring 2nd generation AMD 3D V-Cache™ technology, this processor delivers unparalleled gaming speed thanks to its massive 128MB L3 cache, alongside exceptional multi-threaded performance for content creation workloads.

Discover Ultimate Gaming & Creation Power: Ryzen 9 9950X3D

Built on the cutting-edge TSMC 4nm FinFET process for its CPU cores, the Ryzen™ 9 9950X3D boasts 16 cores and 32 threads. It operates with a base clock of 4.3 GHz and can reach a maximum boost clock of up to 5.7 GHz using Precision Boost 2 technology. Furthermore, its defining feature is the stacked 128MB of L3 cache via AMD 3D V-Cache™ technology, significantly accelerating gaming performance by providing faster data access for the CPU cores.

Designed for the AM5 socket, this processor supports the latest DDR5 memory standard (up to 5600 MT/s JEDEC, higher with AMD EXPO™ overclocking profiles) and offers PCIe® 5.0 connectivity with 24 usable lanes for next-generation graphics cards and NVMe storage. Additionally, it includes integrated AMD Radeon™ Graphics (2 cores, 2200 MHz) for basic display output. As an unlocked processor, it supports overclocking via AMD Ryzen™ Master utility and features like Precision Boost Overdrive and Curve Optimizer Voltage Offsets for enthusiasts seeking to fine-tune performance.

With a default TDP of 170W, a high-performance liquid cooler is recommended for optimal performance and thermal management (cooler not included with the boxed processor). Explore compatible AM5 motherboards (X870E, X670E, B850, B650E, etc.) or high-performance CPU coolers. Find full details on the official AMD Ryzen 9 9950X3D product page.

Specifications

• Model: AMD Ryzen™ 9 9950X3D
• Part Number (Boxed): 100-100000719WOF
• UPC: 730143315555
• Architecture: Zen 5
• Cores / Threads: 16 / 32
• Max. Boost Clock: Up to 5.7 GHz
• Base Clock: 4.3 GHz
• L1 Cache: 1280 KB
• L2 Cache: 16 MB
• L3 Cache: 128 MB (AMD 3D V-Cache™)
• Default TDP: 170W
• CPU Socket: AM5
• PCIe Version: PCIe® 5.0
• Native PCIe Lanes (Total/Usable): 28 / 24
• Memory Support: DDR5 (Up to 5600 MT/s JEDEC, EXPO™ Support)
• Max Memory: 192 GB
• Integrated Graphics: AMD Radeon™ Graphics (2 Cores @ 2200 MHz)
• Unlocked for Overclocking: Yes
• Thermal Solution: Not Included (Liquid Cooler Recommended)
• Max Operating Temp (Tjmax): 95°C
